S30ENT422.80A001

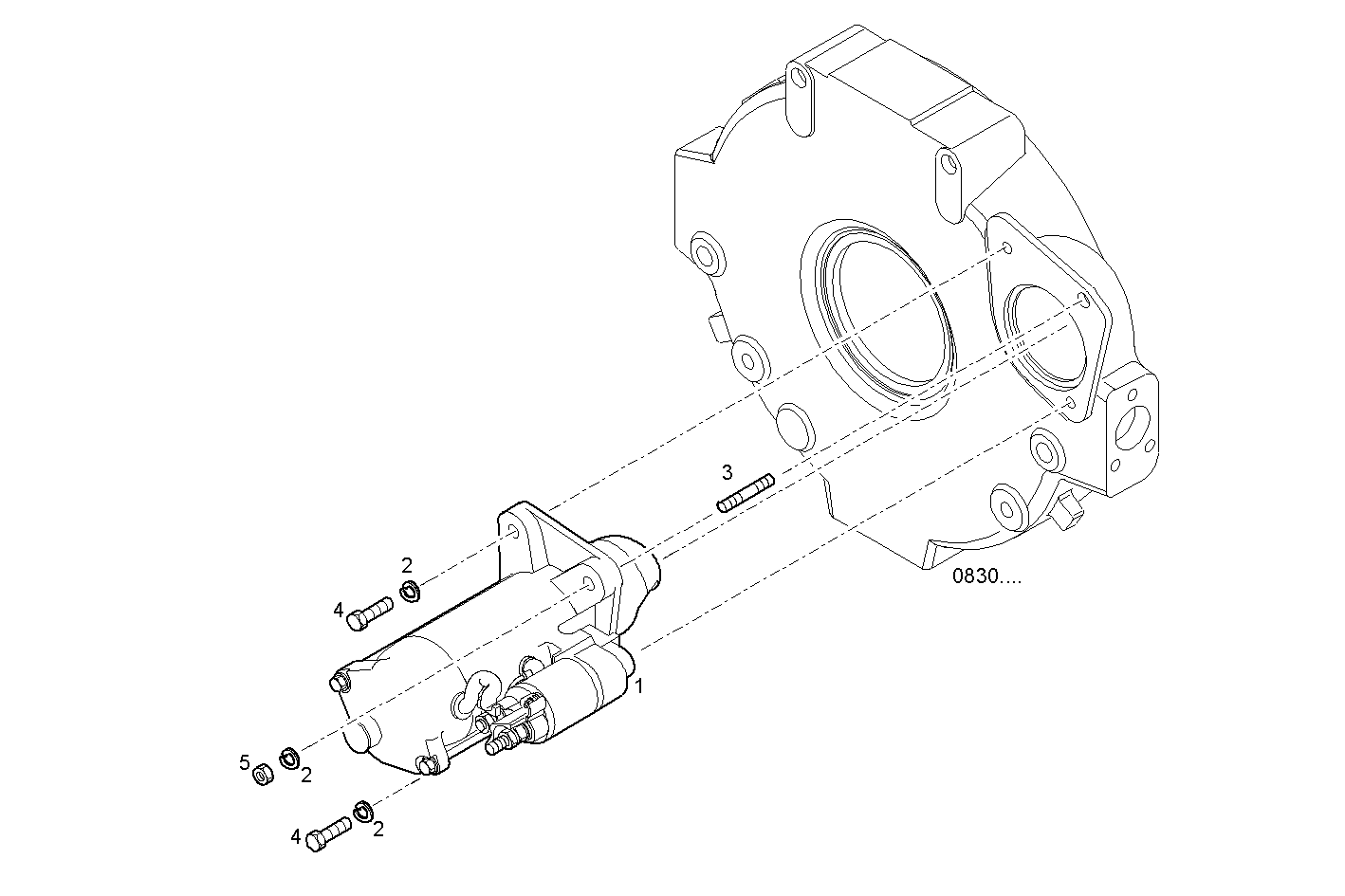

3600.006 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504201467 | STARTER MOTOR |
| 2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 3 | 16747024 | STUD |
| 4 | 16605934 | HEXAGON BOLT M8X40 MM (10.9) |
| 5 | 17037925 | HEXAGON NUT M8X1,25 |
