S30ENT422.80A002

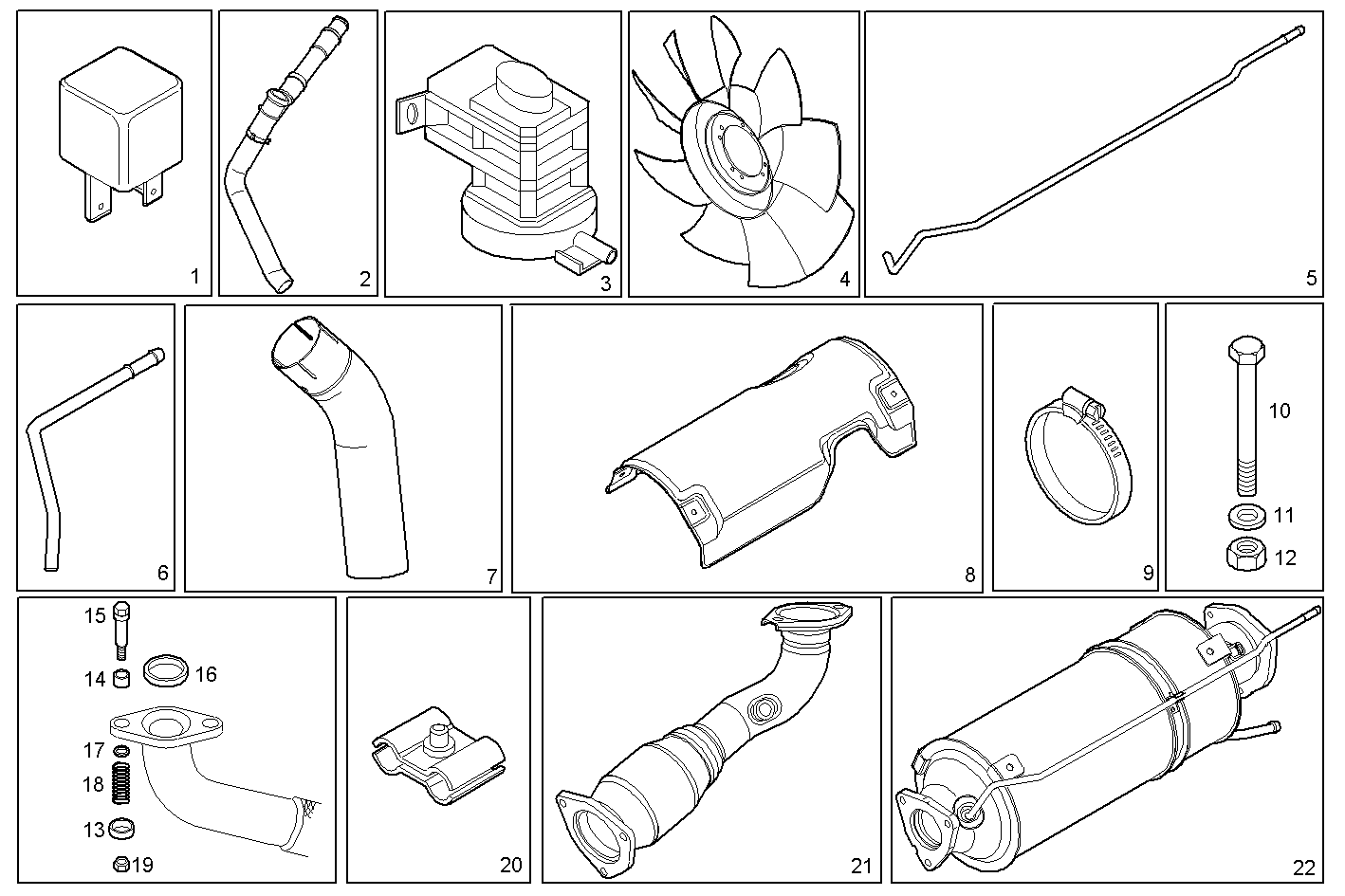

8600.015/02 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 69502214 | SWITCH |
| 2 | 504095970 | HEATING TUBE |
| 3 | 46524556 | ELECTROVALVE EGR |
| 4 | 504154349 | ELECTROFAN |
| 5 | 504282140 | PIPE rear - for pressure sensor |
| 6 | 504131274 | PIPE front - for pressure sensor |
| 7 | 504041806 | TAIL PIPE |
| 8 | 504129349 | PROTECTION for D.P.F. |
| 9 | 8582510 | CLIP |
| 10 | 16598425 | HEXAGON BOLT M8X110 MM |
| 11 | 17094914 | WASHER 8x16 |
| 12 | 16750225 | HEXAGON NUT M8 |
| 13 | 9150917480 | COVER |
| 14 | 9150951680 | BUSH |
| 15 | 9152127080 | SCREW |
| 16 | 9603895480 | RING |
| 17 | 9603945980 | WASHER |
| 18 | 9607970680 | SPRING |
| 19 | 16750125 | HEXAGON NUT M6 |
| 20 | 504131272 | SPRING CLAMP |
| 21 | 504161873 | EXHAUST PIPE |
| 22 | 504290373 | SILENCER |
