S30ENT422.91L003

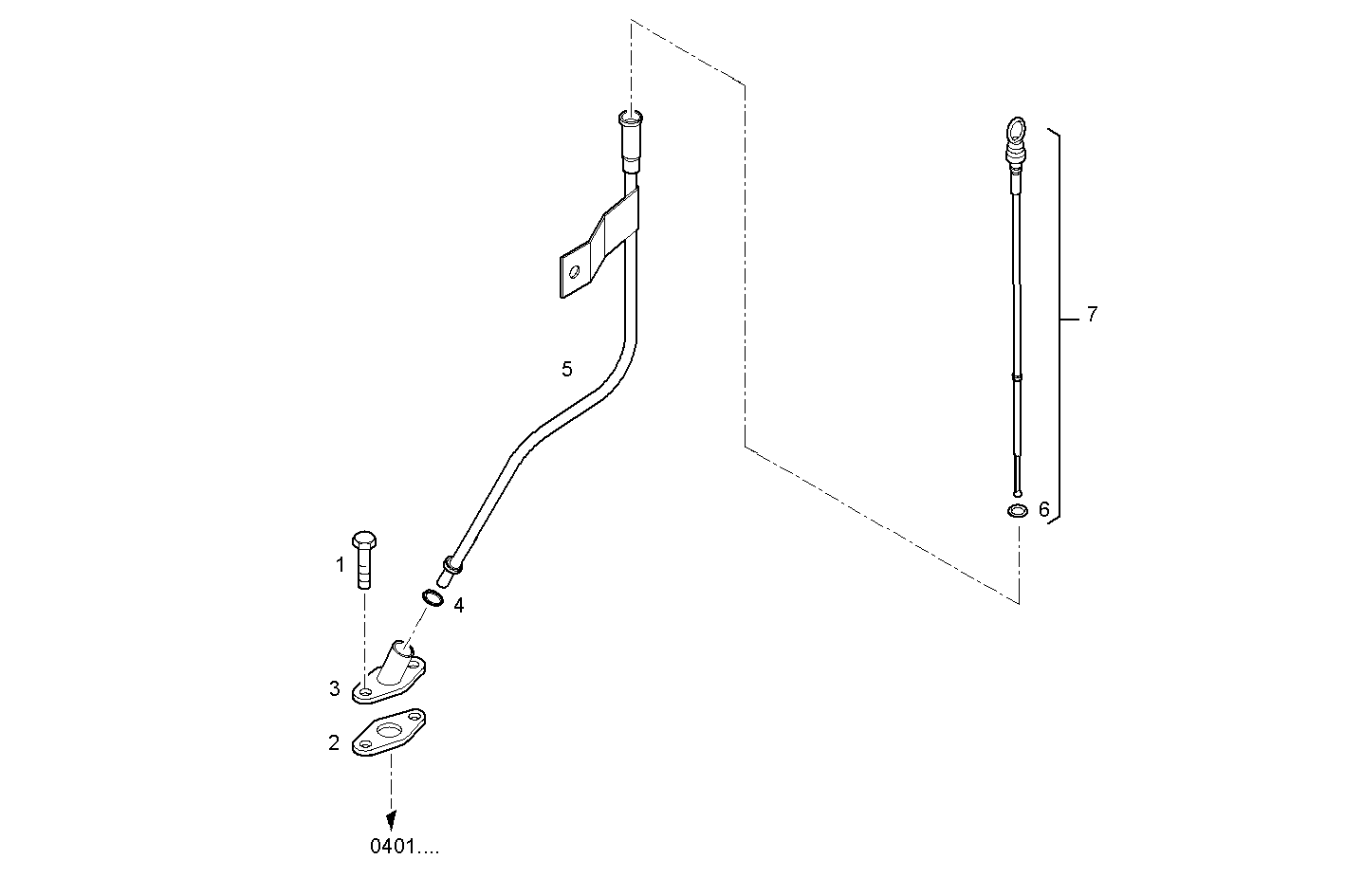

2700.069 OIL DIPSTICK & FILLER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 2 | 8048521 | FLAT ENGINE GASKET |
| 3 | 8048487 | FLANGE |
| 4 | 17277981 | O-RING 1,78x9,25 |
| 5 | 504232618 | OIL LEVEL TUBE |
| 6 | 504027969 | O-RING |
| 7 | 8052440 | OIL DIPSTICK ASSY |
