S30ENT422.91L003

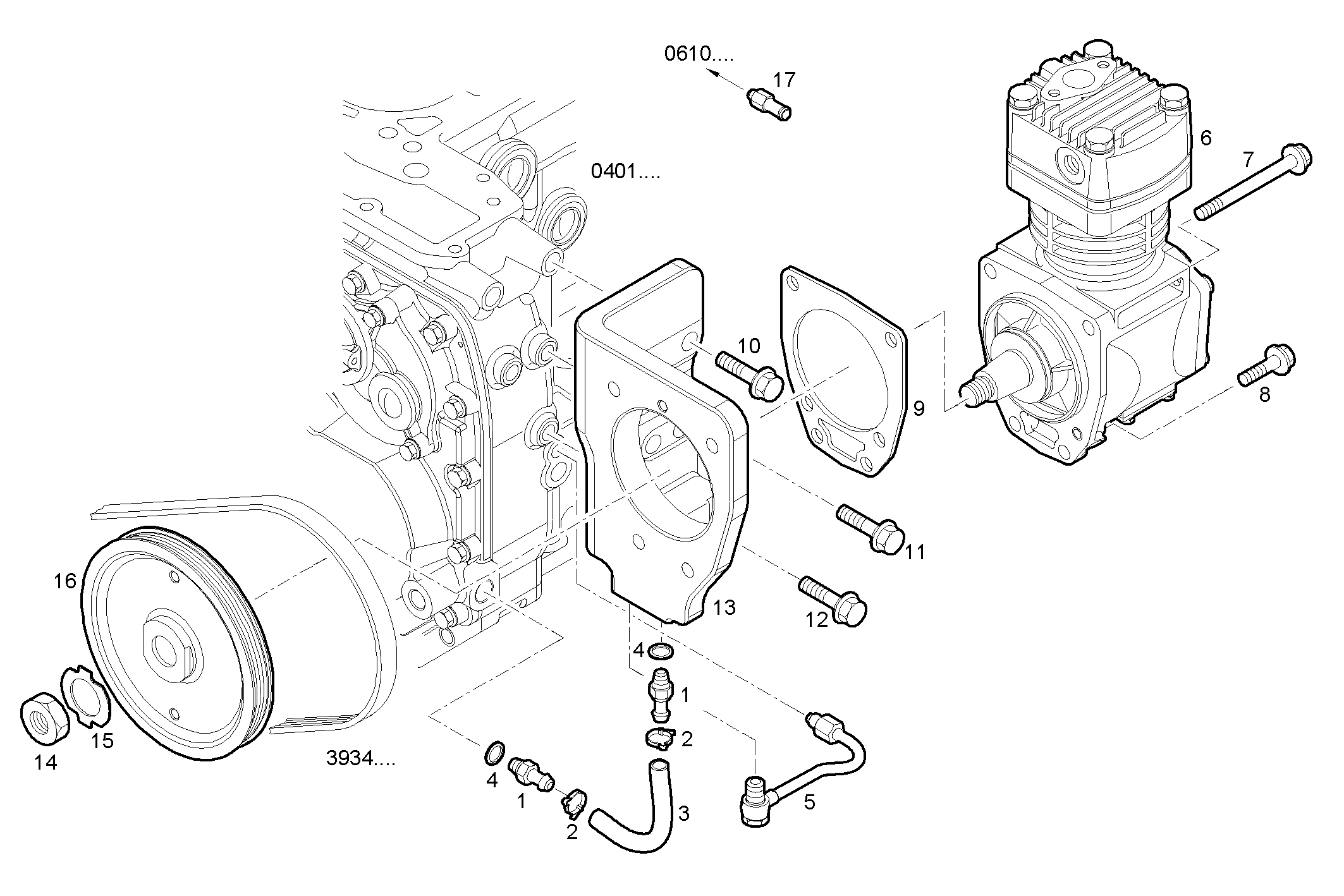

3801.010 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4616630 | THREADED UNION |
| 2 | 18088292 | CLIP Ø12/20 MM |
| 3 | 504086840 | WATER HOSE |
| 4 | 16508260 | WASHER Ø16X20 MM |
| 5 | 504115044 | OIL LINE |
| 6 | 500310900 | AIR COMPRESSOR ASSY KNORR |
| 7 | 16598924 | HEXAGON BOLT M10X110 |
| 8 | 16587325 | HEXAGON BOLT M10X35 MM |
| 9 | 504272400 | FLAT ENGINE GASKET |
| 10 | 500347046 | HEXAGON BOLT M12X1,25 |
| 11 | 16288424 | HEXAGON BOLT M10X1,25X25 MM |
| 12 | 504122388 | HEXAGON BOLT |
| 13 | 504029915 | CARRIER |
| 14 | 99471892 | HEXAGON NUT |
| 15 | 4709364 | LOCKING PLATE |
| 16 | 504029916 | PULLEY |
| 17 | 99447076 | CONNECTION PIPE |
