S30ENT422.91L003

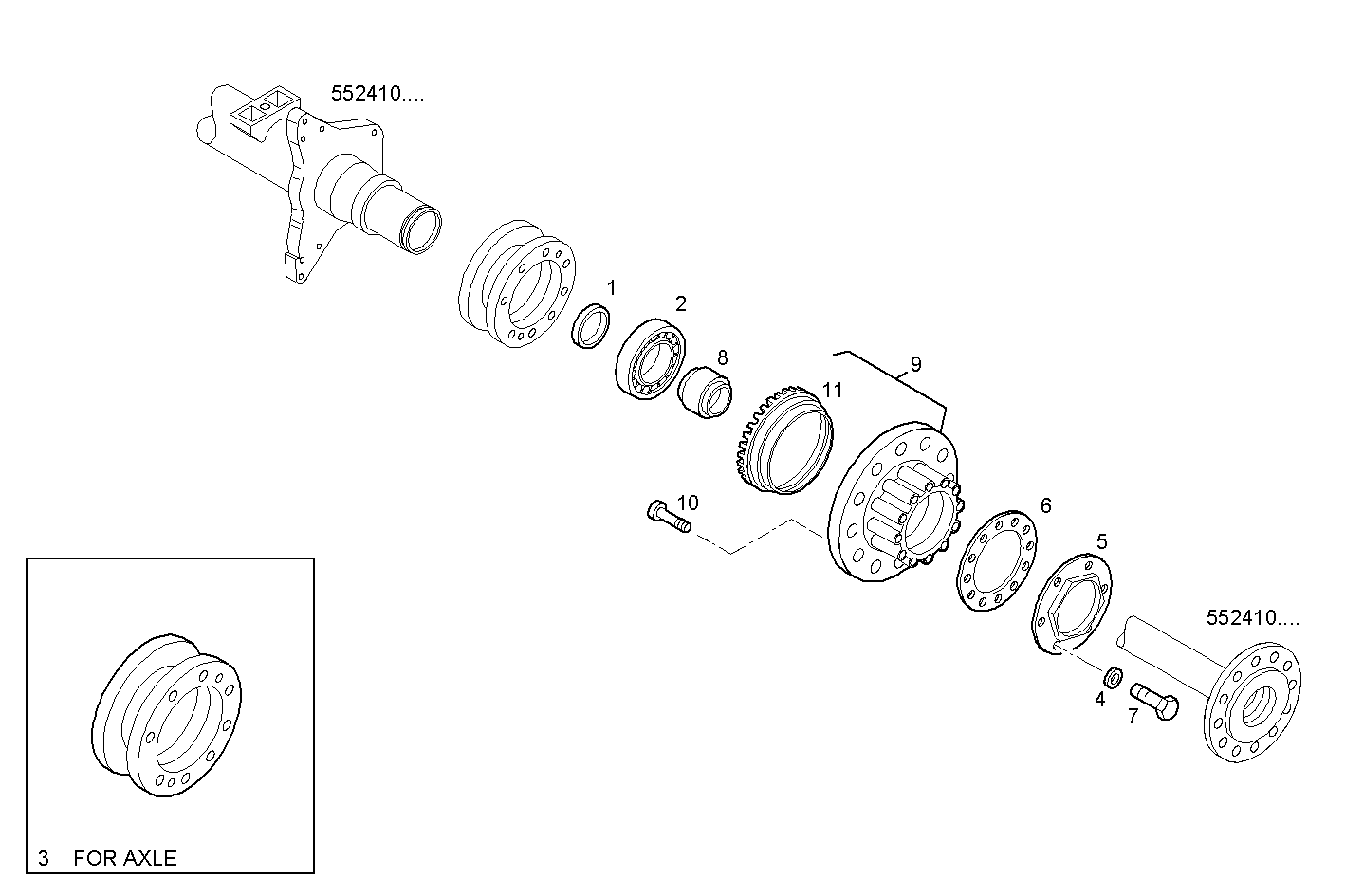

522410.000/03 REAR AXLE - components
| Item | Part number | Description |
|---|---|---|
| 1 | 7185250 | SHAFT SEAL |
| 2 | 1905220 | WHEEL BEARINGS |
| 3 | 2996049 | SET OF BRAKE DISC |
| 4 | 17088574 | WASHER Ø6X12 MM |
| 5 | 7172752 | FASTENING RING |
| 6 | 7172761 | FASTENING RING |
| 7 | 16688934 | SCREW |
| 8 | 7172804 | SPACING BAR |
| 9 | 46390916 | HUB |
| 10 | 46390478 | CYL.HEAD STUD |
| 11 | 46390830 | RING GEAR |
