S30ENT422.91L003

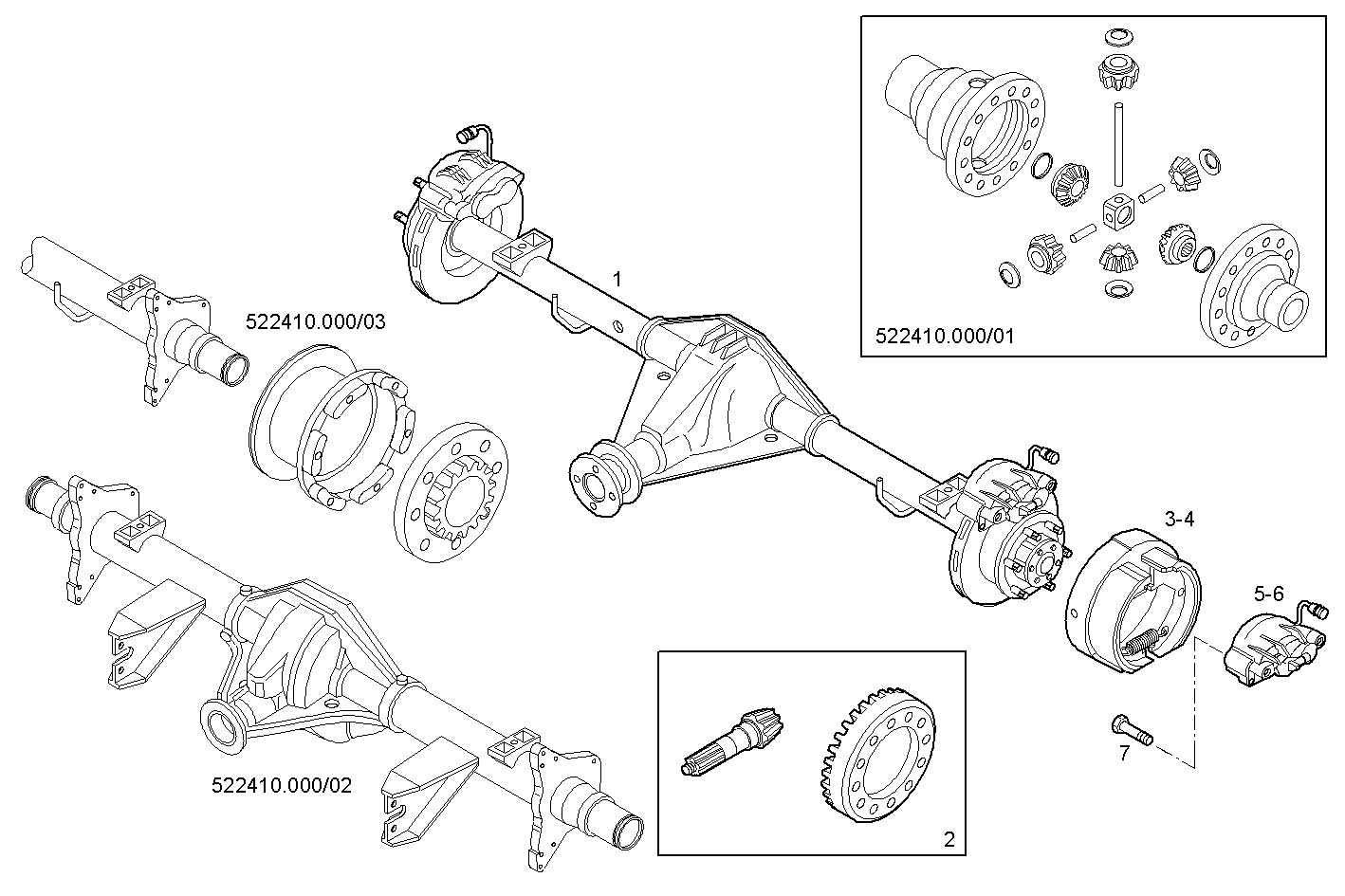

522410.000 REAR AXLE
| Item | Part number | Description |
|---|---|---|
| 1 | 46391198 | REAR AXLE ASSY |
| 2 | 7174590 | BEVEL DRIVE |
| 3 | 504093277 | PARKINGBRAKE RIGHT |
| 4 | 504093276 | PARKINGBRAKE LEFT |
| 5 | 42554991 | BRAKE SADDLE RIGHT |
| 6 | 42554990 | BRAKE SADDLE LEFT |
| 7 | 16324434 | LOCKING SCREW |
