S30ENT422.91L003

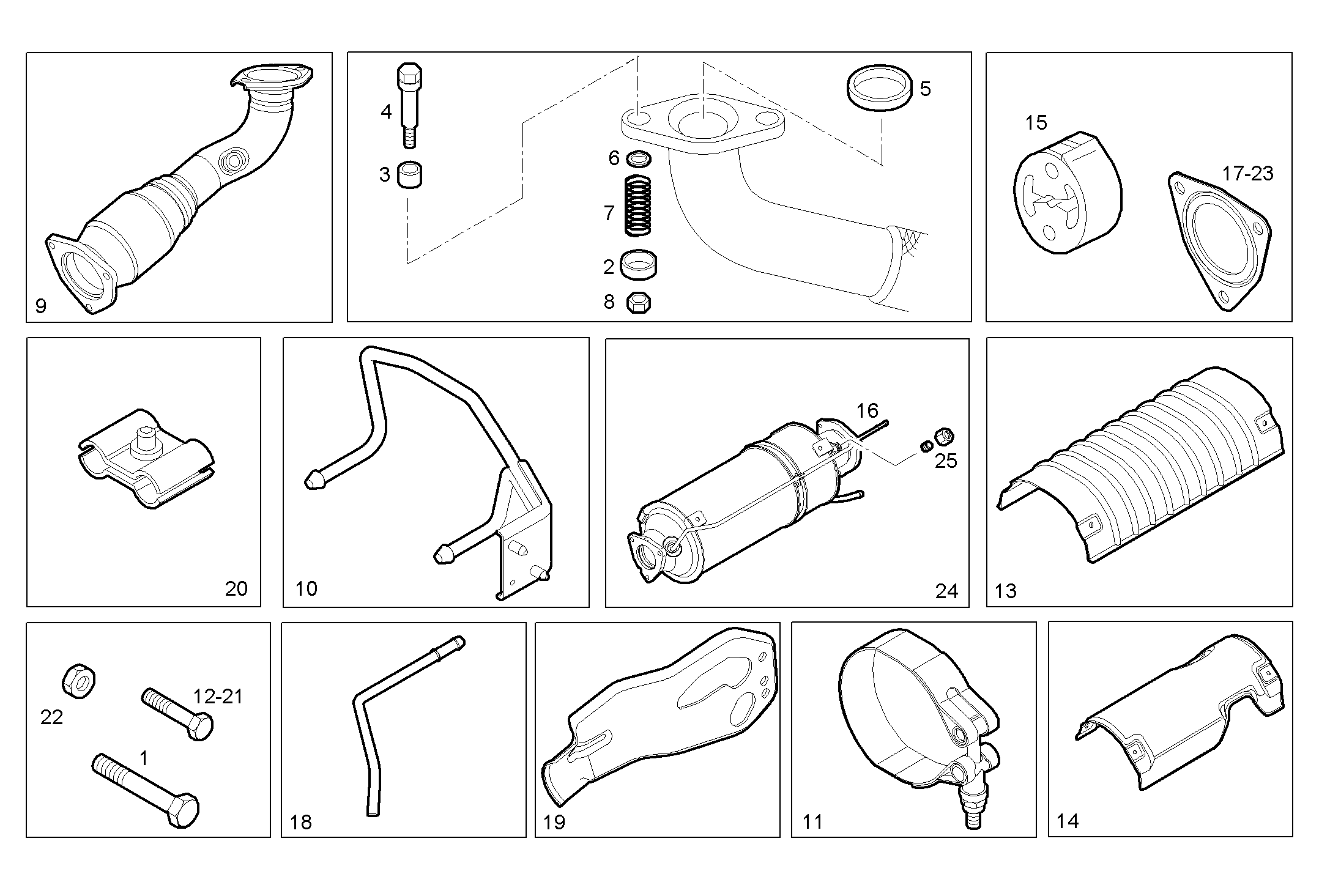

8600.334 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 16587125 | HEXAGON BOLT M10X25 MM |
| 2 | 9150917480 | COVER |
| 3 | 9150951680 | BUSH |
| 4 | 9152127080 | SCREW |
| 5 | 9603895480 | RING |
| 6 | 9603945980 | WASHER |
| 7 | 9607970680 | SPRING |
| 8 | 16750125 | HEXAGON NUT M6 |
| 9 | 504161873 | EXHAUST PIPE |
| 10 | 504131268 | RETAINER for D.P.F. |
| 11 | 504131267 | CLIP |
| 12 | 16596924 | HEXAGON BOLT M6X10 MM |
| 13 | 504129350 | PROTECTION for Silencer |
| 14 | 504129349 | PROTECTION for D.P.F. |
| 15 | 504131271 | RUBBER LUG |
| 16 | 504282140 | PIPE rear - for pressure sensor |
| 17 | 504131269 | GASKET FRONT PIPE/D.P.F. |
| 18 | 504131274 | PIPE front - for pressure sensor |
| 19 | 504166349 | RETAINER |
| 20 | 504131272 | SPRING CLAMP |
| 21 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 22 | 16750225 | HEXAGON NUT M8 |
| 23 | 504131270 | GASKET D.P.F./SILENCER |
| 24 | 504290373 | SILENCER |
| 25 | 504341873 | REPAIR KIT nut & olive |
