S30ENT425.10A001

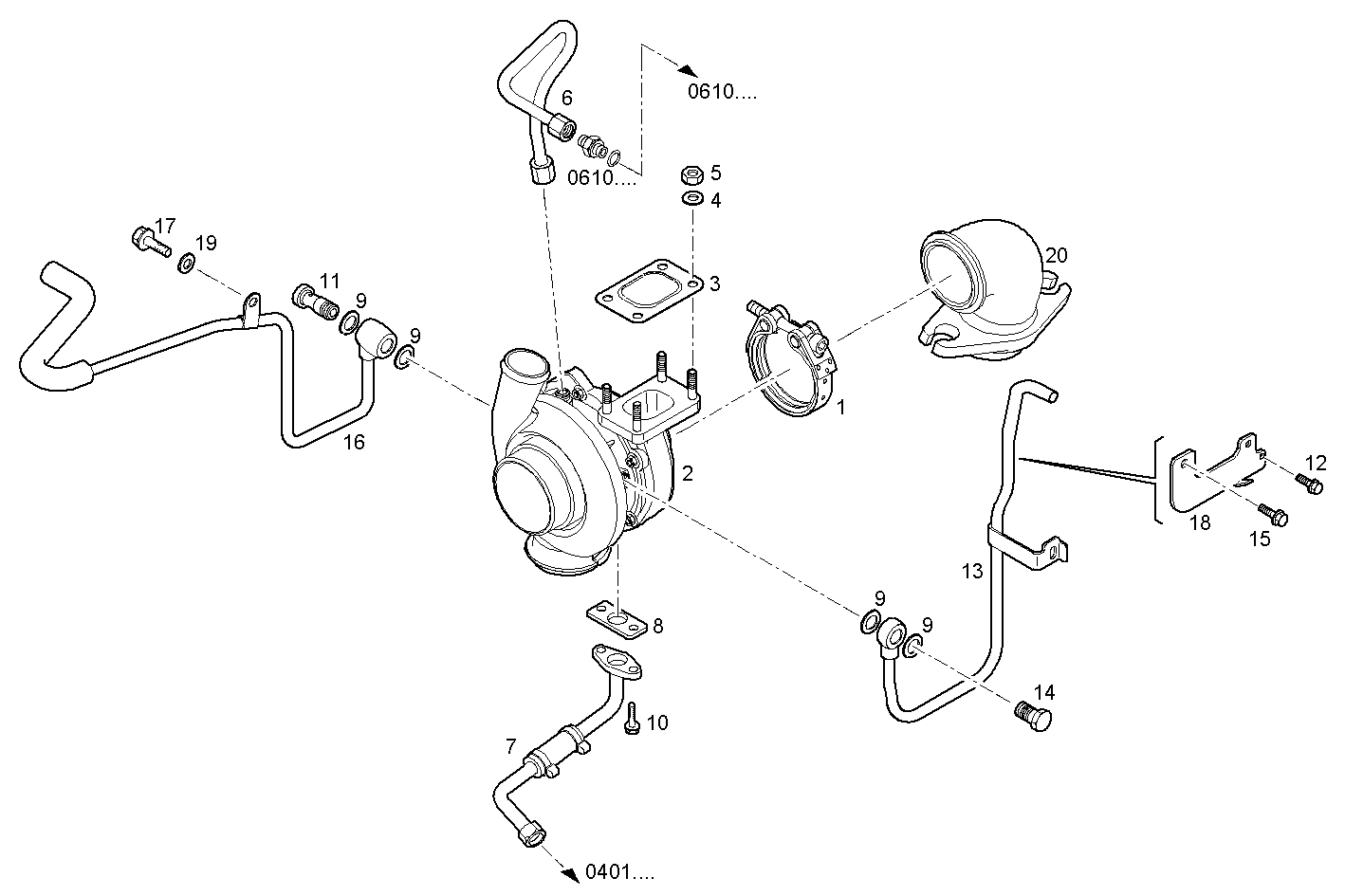

2400.066 TURBOCHARGER
Item | Part number | Description |
---|---|---|
1 | 504120931 | CLIP |
2 | 504205349 | VARIAB.GEOM.TURBINE |
3 | 4834948 | EXH. MANIFOLD GKT |
4 | 17094914 | WASHER 8x16 |
5 | 500322677 | HEXAGON NUT M8 |
6 | 504107714 | OIL LINE |
7 | 504070682 | OIL LINE |
8 | 500370706 | FLAT ENGINE GASKET |
9 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
10 | 16585870 | HEXAGON BOLT M6X20 |
11 | 504221839 | SCREW CONNECTOR |
12 | 18137825 | HEXAGON BOLT M6X16 |
13 | 504222093 | WATER PIPE |
14 | 504081281 | SCREW CONNECTOR M12X1,5 |
15 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
16 | 504221688 | WATER PIPE |
17 | 16597225 | HEXAGON BOLT M6X18 MM |
18 | 504221920 | RETAINER |
19 | 17094611 | WASHER |
20 | 504048189 | AIR PIPE/DUCT |
