S30ENTC24.00L008

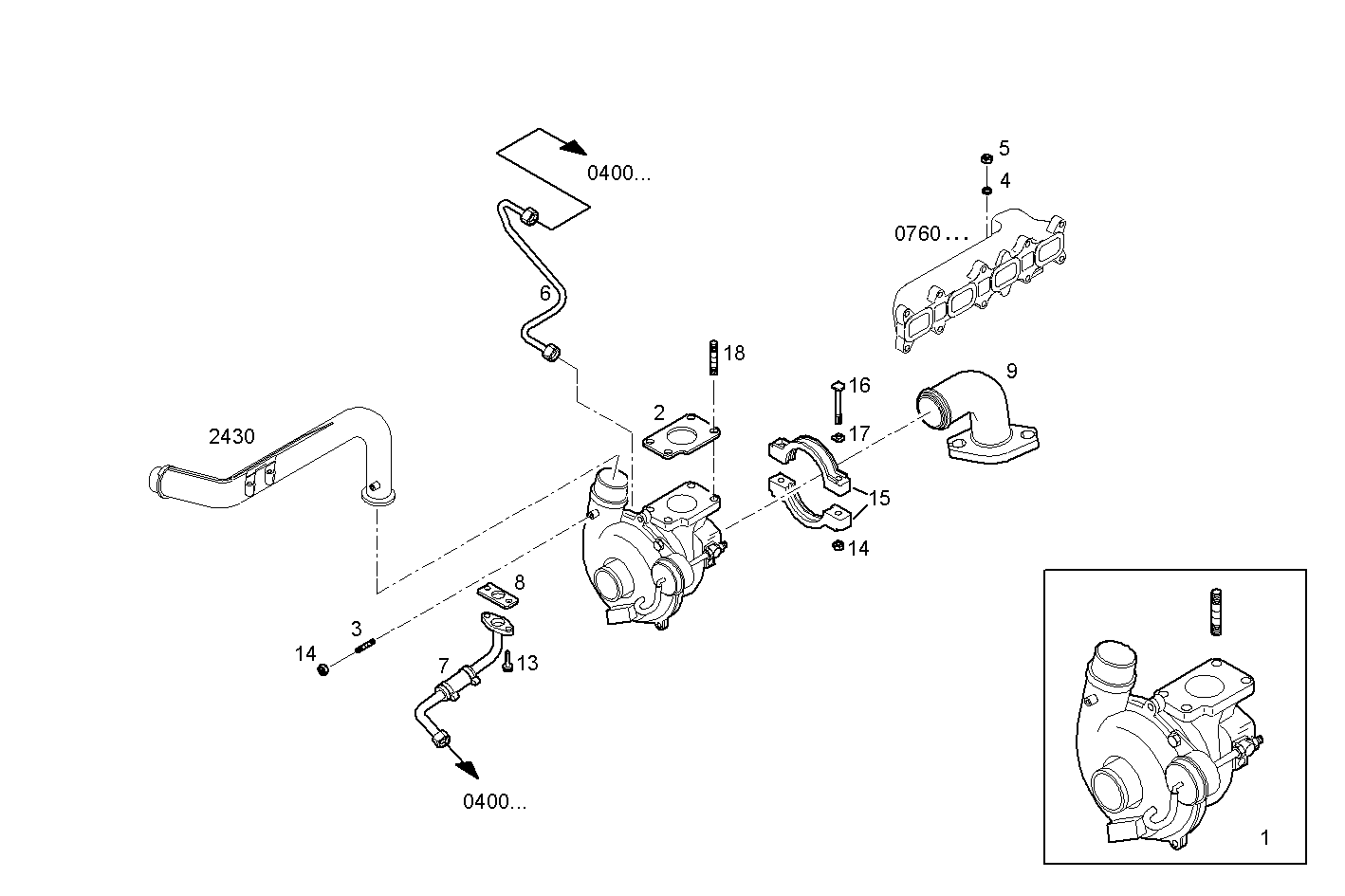

2400.254 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 504093025 TURBOCHARGER
2 4834948 EXH. MANIFOLD GKT
3 504104321 STUD [UP TO # 207576]
4 17094914 WASHER 8x16
5 500322677 HEXAGON NUT M8
6 504107714 OIL LINE
7 504070682 OIL LINE
8 500370706 FLAT ENGINE GASKET
9 504048189 AIR PIPE/DUCT
13 16585825 HEXAGON BOLT M6X20 MM
14 17044625 HEXAGON NUT M6
15 500377680 HALF-RING [UP TO # 215574]
16 500378050 SCREW M8X60 MM [UP TO # 215574]
17 500378052 WASHER [UP TO # 215574]
18 16729424 STUD M8X1,25X25
19 504120931 CLIP
20 18137825 HEXAGON BOLT M6X16
