S30ENTC24.00L008

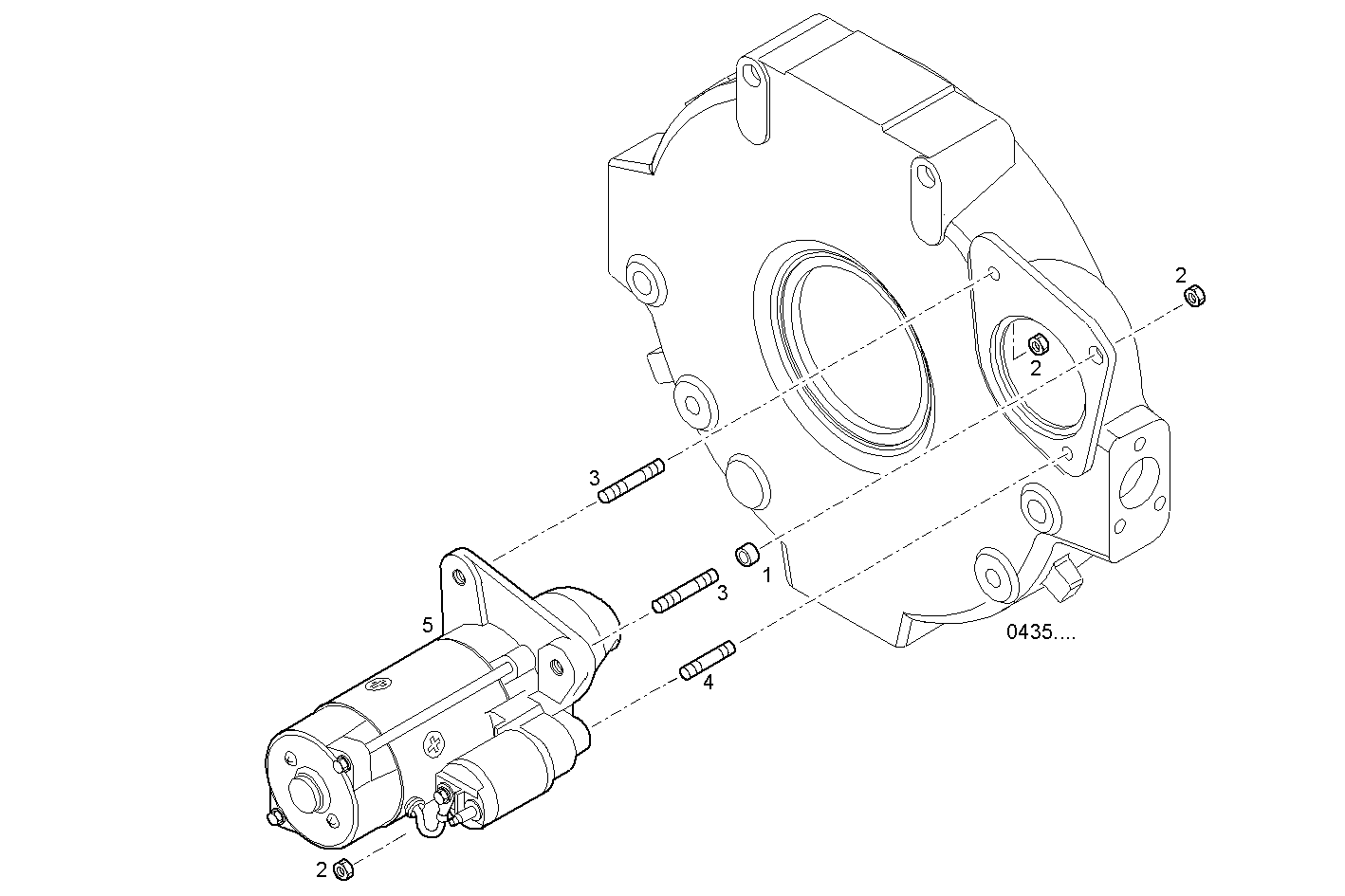

3600.010 STARTER MOTOR
| Item | Part number | Description |
|---|---|---|
| 1 | 98405462 | DOWEL PIN Ø10,2 MM |
| 2 | 17044725 | HEXAGON NUT M8 |
| 3 | 16729624 | STUD M8X35 |
| 4 | 16729424 | STUD M8X1,25X25 |
| 5 | 504204112 | STARTER MOTOR ASSY 24V |
