S30ENTC24.00L008

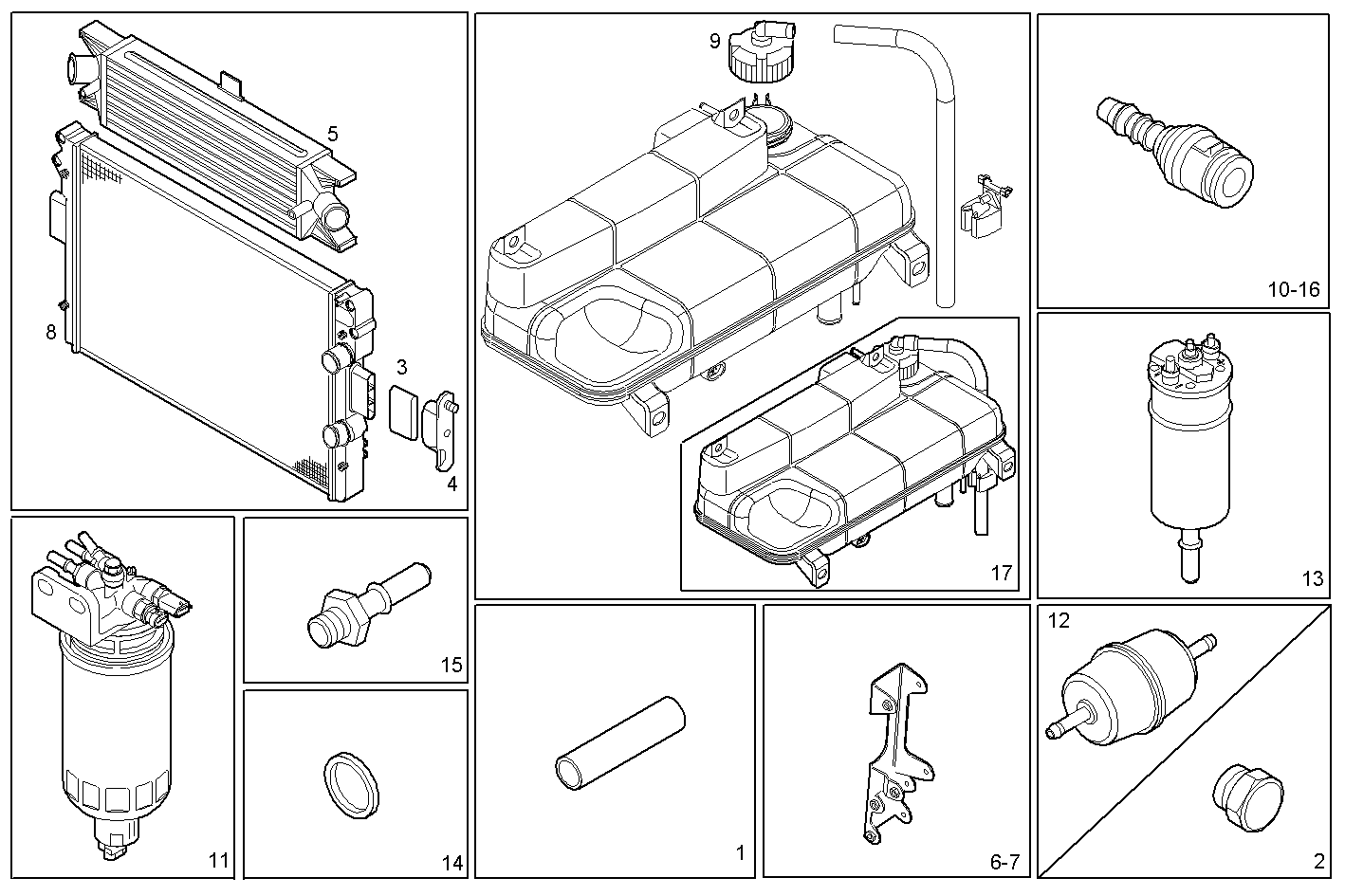

8600.351/01 ACCESSORIES
Item | Part number | Description |
---|---|---|
1 | 93804651 | PLASTIC TUBE |
2 | 42535396 | THREADED PLUG M10X1,5 |
3 | 504294809 | RUBBER LUG |
4 | 93810564 | SUPPORT |
5 | 504084140 | INTERCOOLER |
6 | 500333124 | RETAINER RIGHT |
7 | 99487945 | RETAINER LEFT |
8 | 500396428 | WATER RADIATOR ASSY |
9 | 99489567 | PLUG [from …] |
10 | 500373711 | PIPE SOCKET Ø10 MM |
11 | 500327431 | FUEL FILTER ASSY UFI [UP TO 02-03-05] |
12 | 500318246 | PREFILTER |
13 | 93828642 | PUMP |
14 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
15 | 500344937 | THREADED UNION M10X1 |
16 | 500373710 | PIPE SOCKET Ø8 MM |
17 | 504038776 | EXPANSION TANK ASSY |
