S30ENTG20.00A002

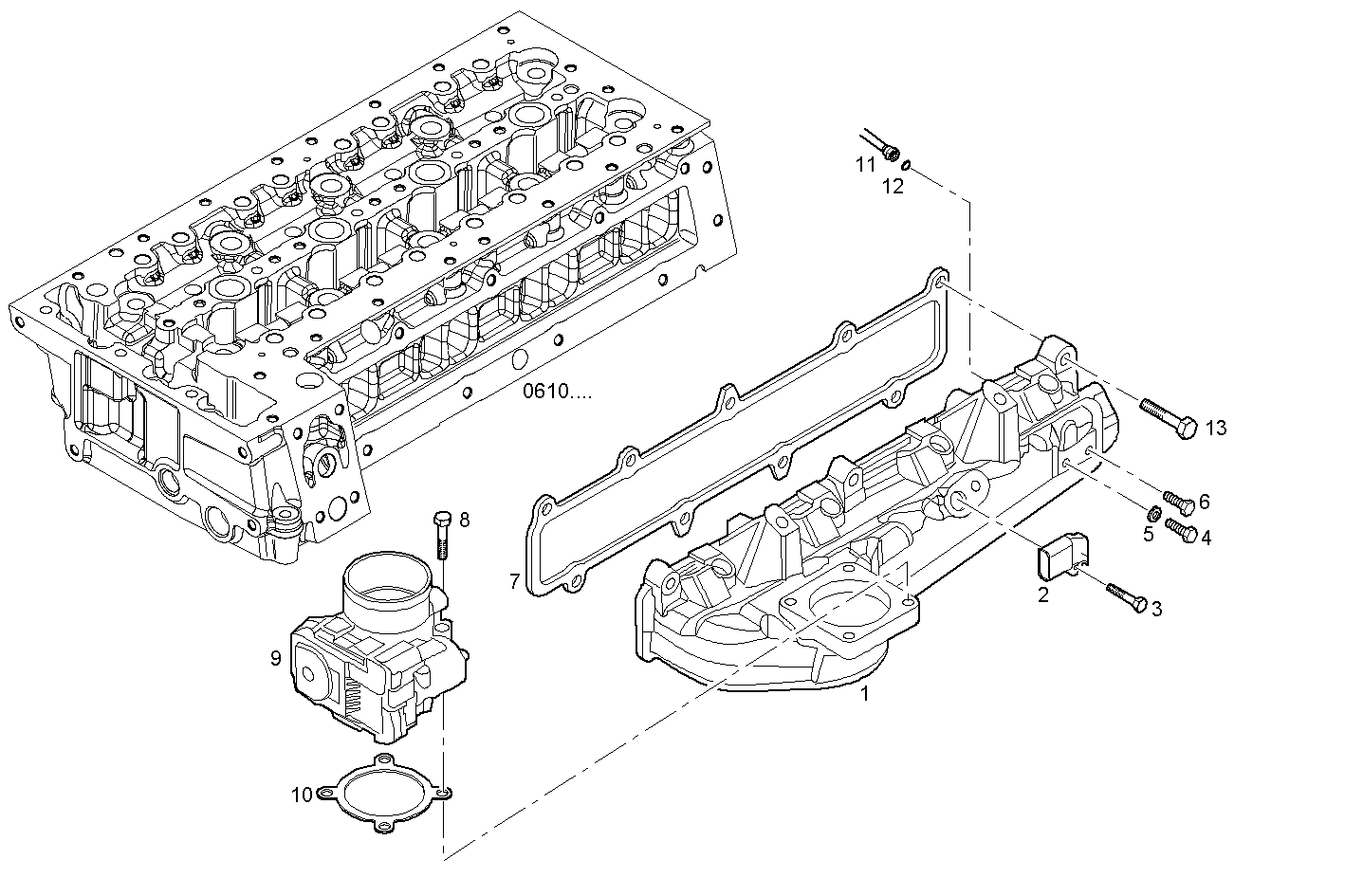

0710.004 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 504203059 | INTAKE ELBOW |
| 2 | 504064370 | SENSOR AIR PRESS. & TEMPER. |
| 3 | 16597225 | HEXAGON BOLT M6X18 MM |
| 4 | 504158513 | SCREW CONNECTOR |
| 5 | 16780660 | SEAL GASKET |
| 6 | 504228121 | SCREW CONNECTOR |
| 7 | 504047974 | INTAKE ELBOW GASK. |
| 8 | 16689624 | HEXAGON BOLT M6X40 MM (8.8) |
| 9 | 504134412 | VALVE HOUSING |
| 10 | 504142686 | INTAKE ELBOW GASK. |
| 11 | 504142772 | PIPE SOCKET |
| 13 | 16586625 | HEXAGON BOLT M8X35 MM |
