S30ENTG20.00A002

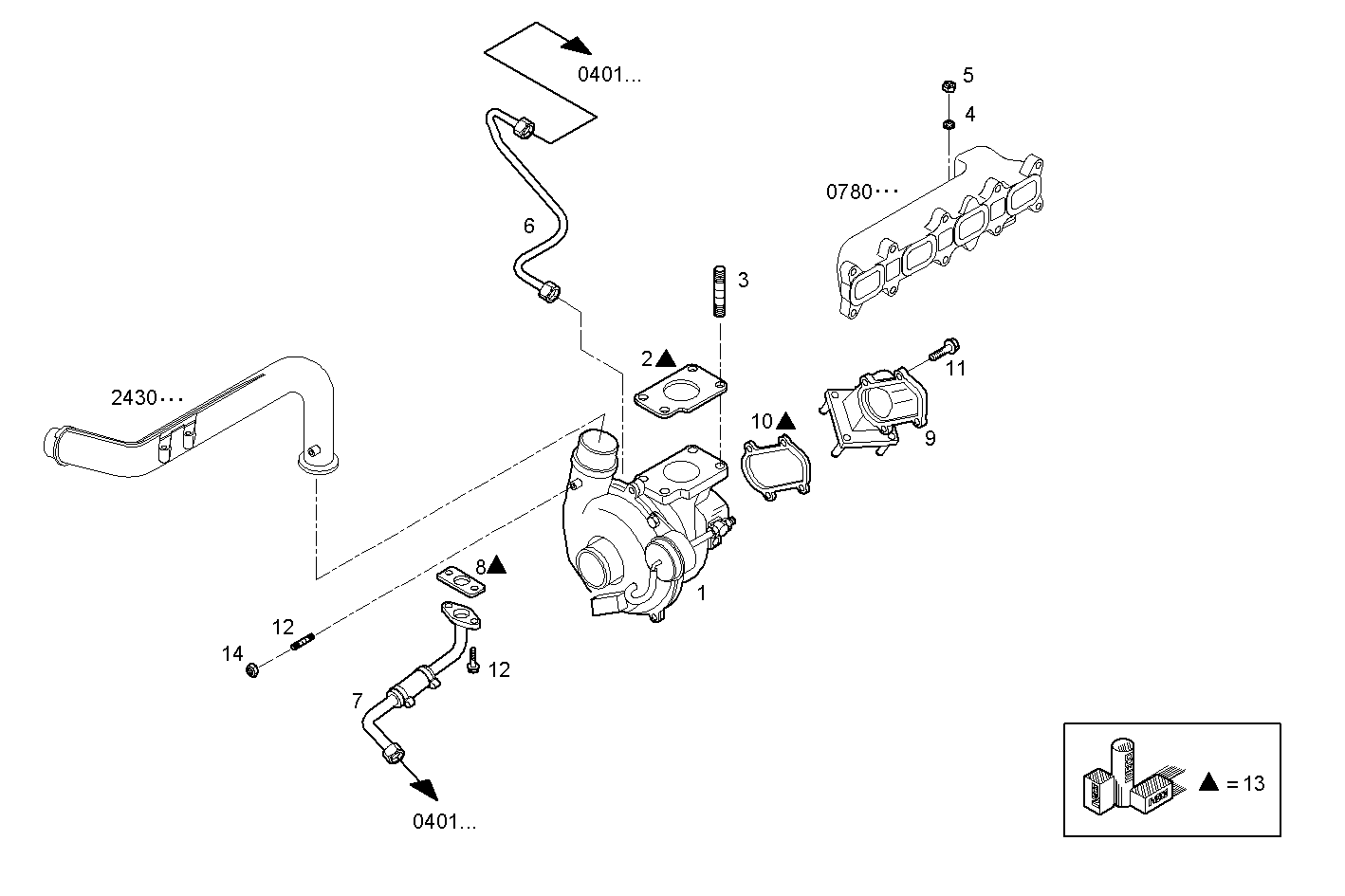

2400.035 TURBOCHARGER
Item | Part number | Description |
---|---|---|
1 | 504132051 | TURBOCHARGER |
2 | 4834948 | EXH. MANIFOLD GKT |
3 | 98492637 | STUD M8X12X27 MM |
4 | 17094914 | WASHER 8x16 |
5 | 500322677 | HEXAGON NUT M8 |
6 | 504107712 | OIL LINE |
7 | 504085335 | OIL LINE |
8 | 500370706 | FLAT ENGINE GASKET |
9 | 504142784 | AIR PIPE/DUCT |
10 | 98484659 | FLAT ENGINE GASKET |
11 | 16673735 | HEXAGON BOLT M8X25 MM |
12 | 16585870 | HEXAGON BOLT M6X20 |
13 | 2995567 | KIT-SEAL.GASKETS |
