S30ENTG20.00A002

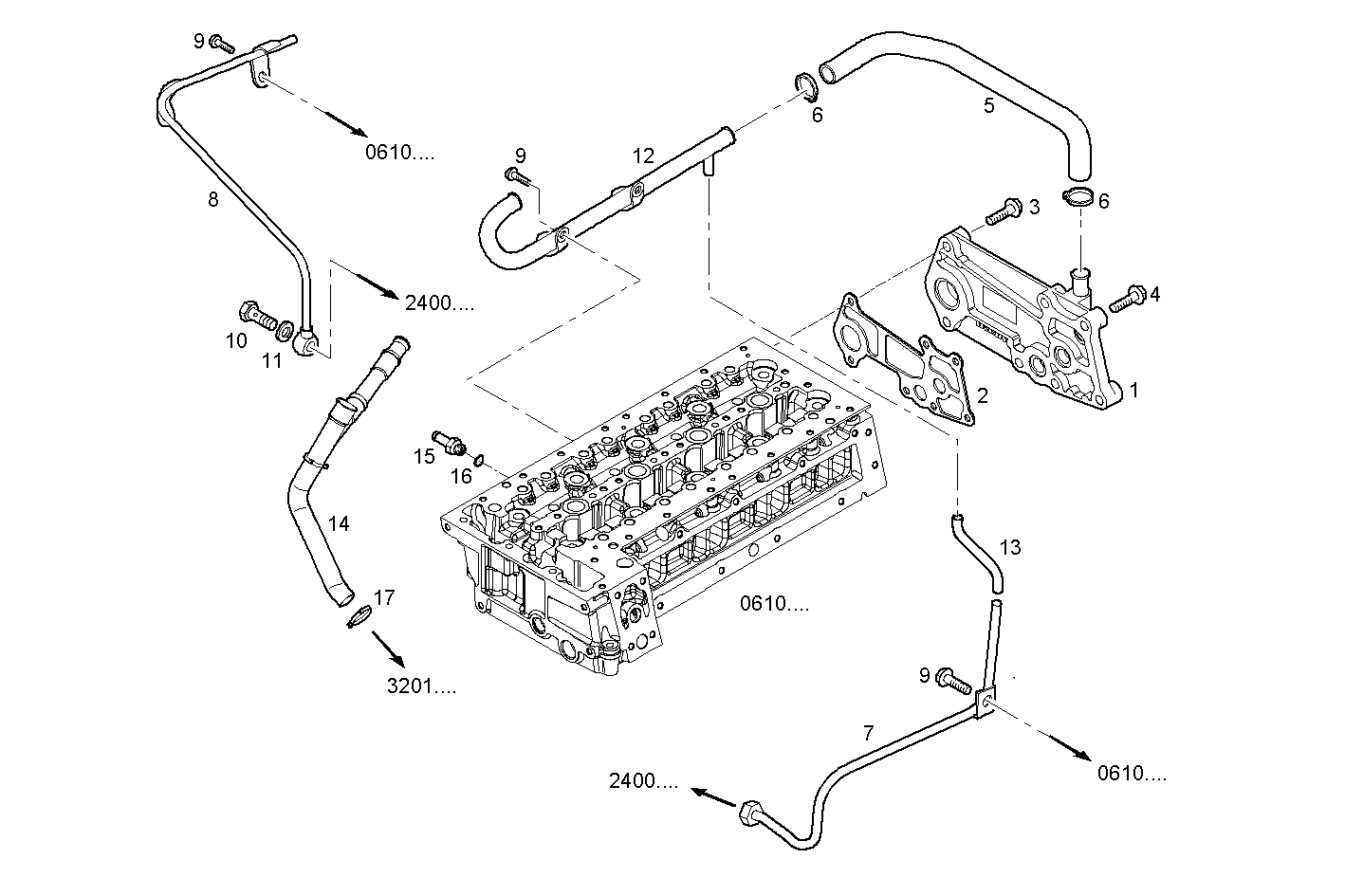

3248.003 TURBO WATER OUTLET PIPE

Iveco/FPT TURBO WATER OUTLET PIPE

Item Part number Description
1 504107225 COVER
2 504090818 FLAT ENGINE GASKET
3 16586625 HEXAGON BOLT M8X35 MM
4 16586825 HEXAGON BOLT M8X1.25X45 MM
5 504198829 RUBBER SLEEVE
6 98463348 CLIP
7 504149204 HEATING TUBE
8 504169279 HEATING TUBE
9 16586225 HEXAGON BOLT M8X1,25X16 MM
10 504081281 SCREW CONNECTOR M12X1,5
11 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
12 504198827 HEATING TUBE
13 504199626 RUBBER SLEEVE
14 504136998 HEATING TUBE
15 504158477 CONNECTION PIPE [FROM # 361301]
16 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
17 98463347 CLIP Ø18,5-25 MM
