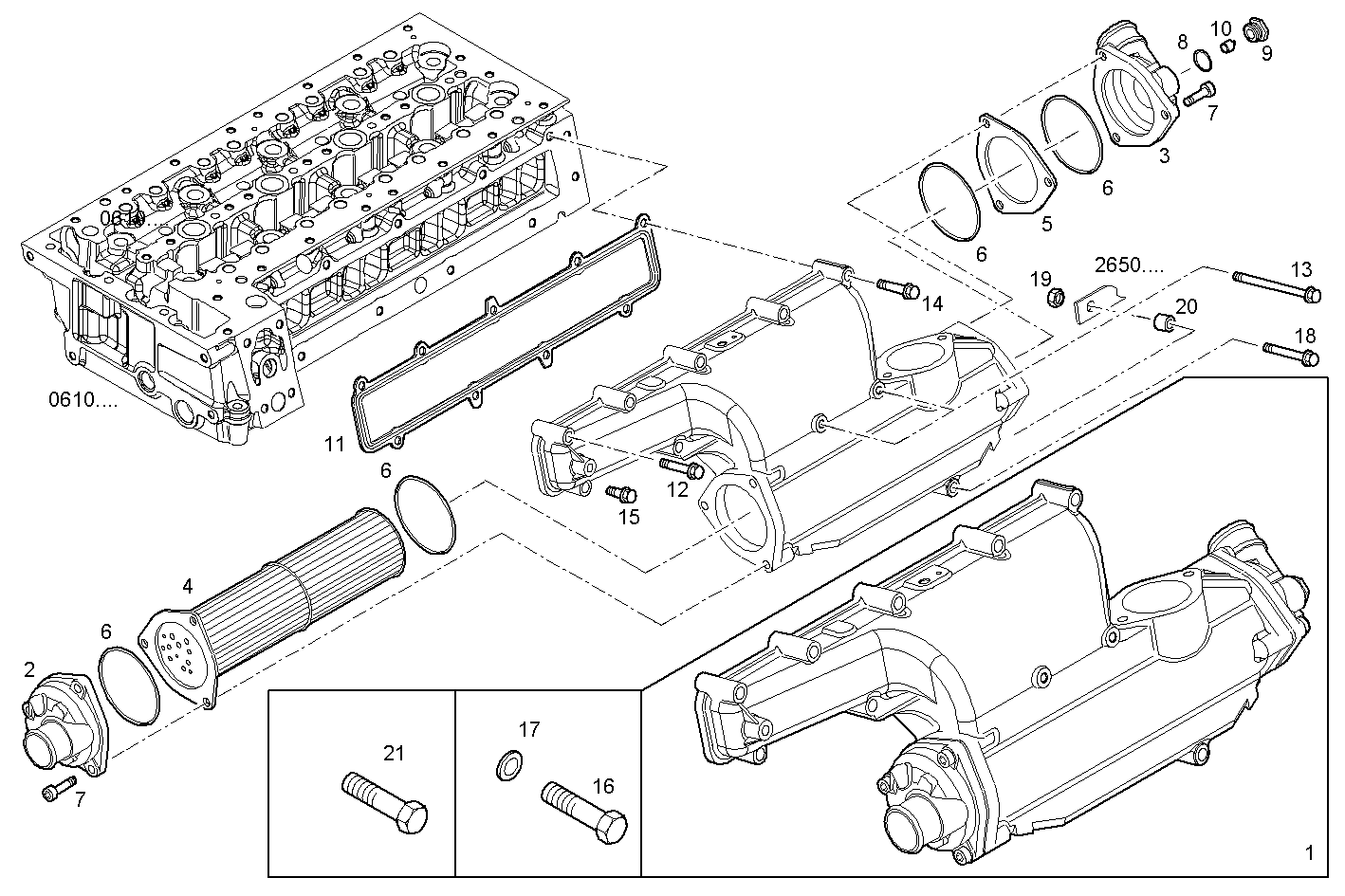

| Item |
Part number |
Description |
|
1 |
8040500 |
INTAKE ELBOW ASSY |
|
2 |
8044243 |
COVER FRONT |
|
3 |
8044242 |
COVER REAR |
|
4 |
8044241 |
TUBE STACK |
|
5 |
8044240 |
GASKET |
|
6 |
8030494 |
O-RING |
|
7 |
16690924 |
CYLIND-HEAD SCREW M8X40 MM |
|
8 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
|
9 |
4917793 |
PLUG M18 |
|
10 |
8105277 |
SACRIFICAL ANODE Ø14 MM |
|
11 |
504047974 |
INTAKE ELBOW GASK. |
|
12 |
16592525 |
HEXAGON BOLT M8X70 MM |
|
13 |
16598624 |
HEXAGON BOLT M8X1,25X140 MM |
|
14 |
16586725 |
HEXAGON BOLT M8X1.25X40 MM |
|
16 |
15970321 |
HEXAGON BOLT M10X16 MM |
|
17 |
17095014 |
WASHER Ø10X18 MM |
|
18 |
16592625 |
HEXAGON BOLT M8X80 MM |
|
19 |
17044721 |
HEXAGON NUT M8X1,25 |
|
20 |
17816314 |
SPACING BAR Ø8,5X18 MM SP=15 MM |
|
21 |
16586625 |
HEXAGON BOLT M8X35 MM |
