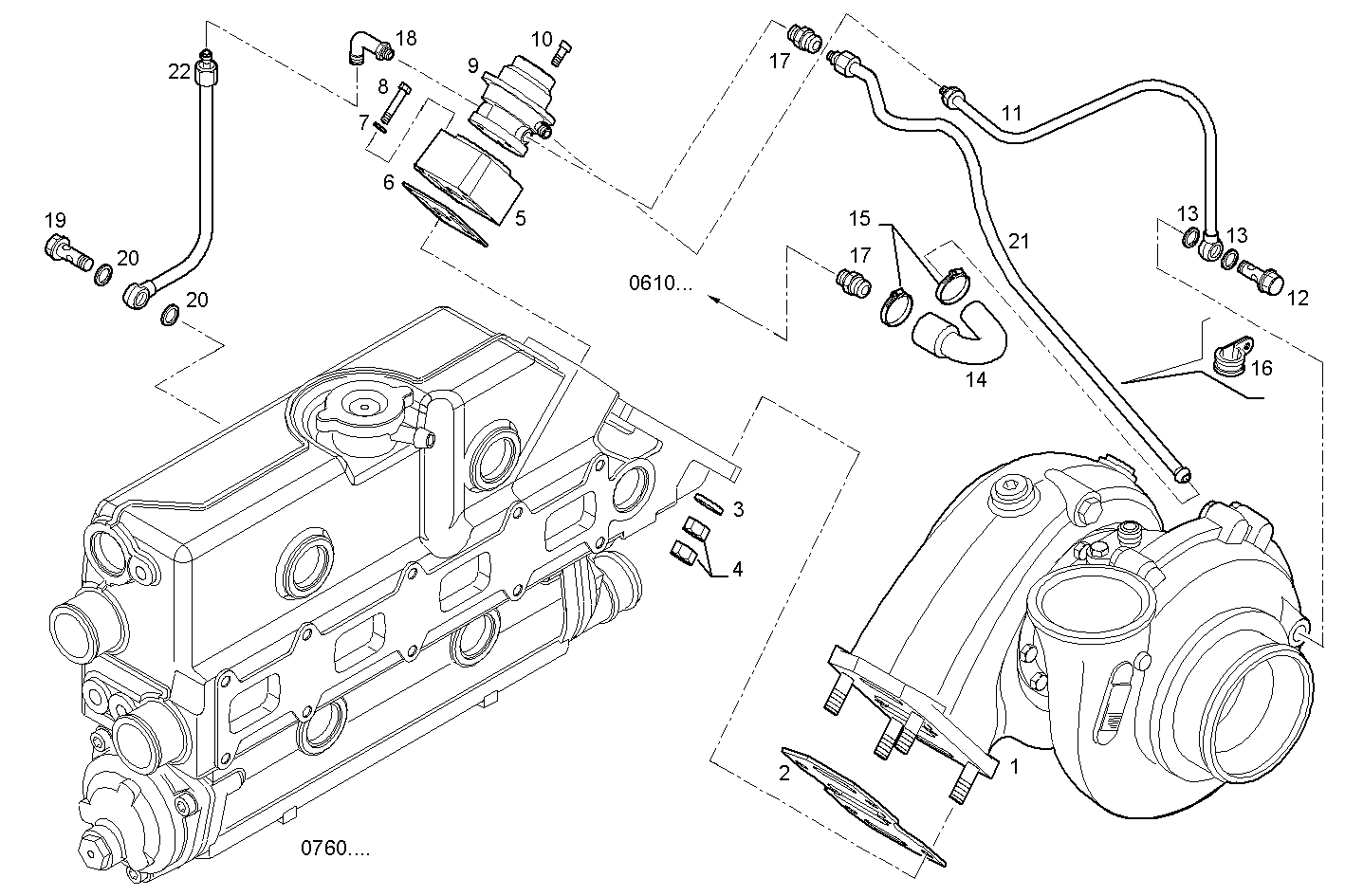

| Item |
Part number |
Description |
|
1 |
8040226 |
TURBOCHARGER |
|
2 |
8014972 |
GASKET |
|
3 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
4 |
16979635 |
HEXAGON NUT M10 |
|
5 |
8041814 |
SPACING BAR |
|
6 |
8041966 |
GASKET |
|
7 |
17094814 |
WASHER |
|
8 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
9 |
8030095 |
VALVE |
|
10 |
16689134 |
SOCKET-HEAD SCREW M6X16 MM |
|
11 |
8042716 |
CONNECTION PIPE |
|
12 |
4864077 |
SCREW CONNECTOR |
|
13 |
4858605 |
WASHER Ø8X12 MM |
|
14 |
8043158 |
RUBBER SLEEVE |
|
15 |
18088493 |
CLIP |
|
16 |
17316592 |
PIPE CLIP |
|
17 |
41905554 |
PIPE SOCKET M14X1,5 - M16X1,5 |
|
18 |
8025927 |
ELBOW COUPLING |
|
19 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
20 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
21 |
8043159 |
DELIVERY LINE |
|
22 |
8040707 |
PIPE |
