S30ENTM23.10

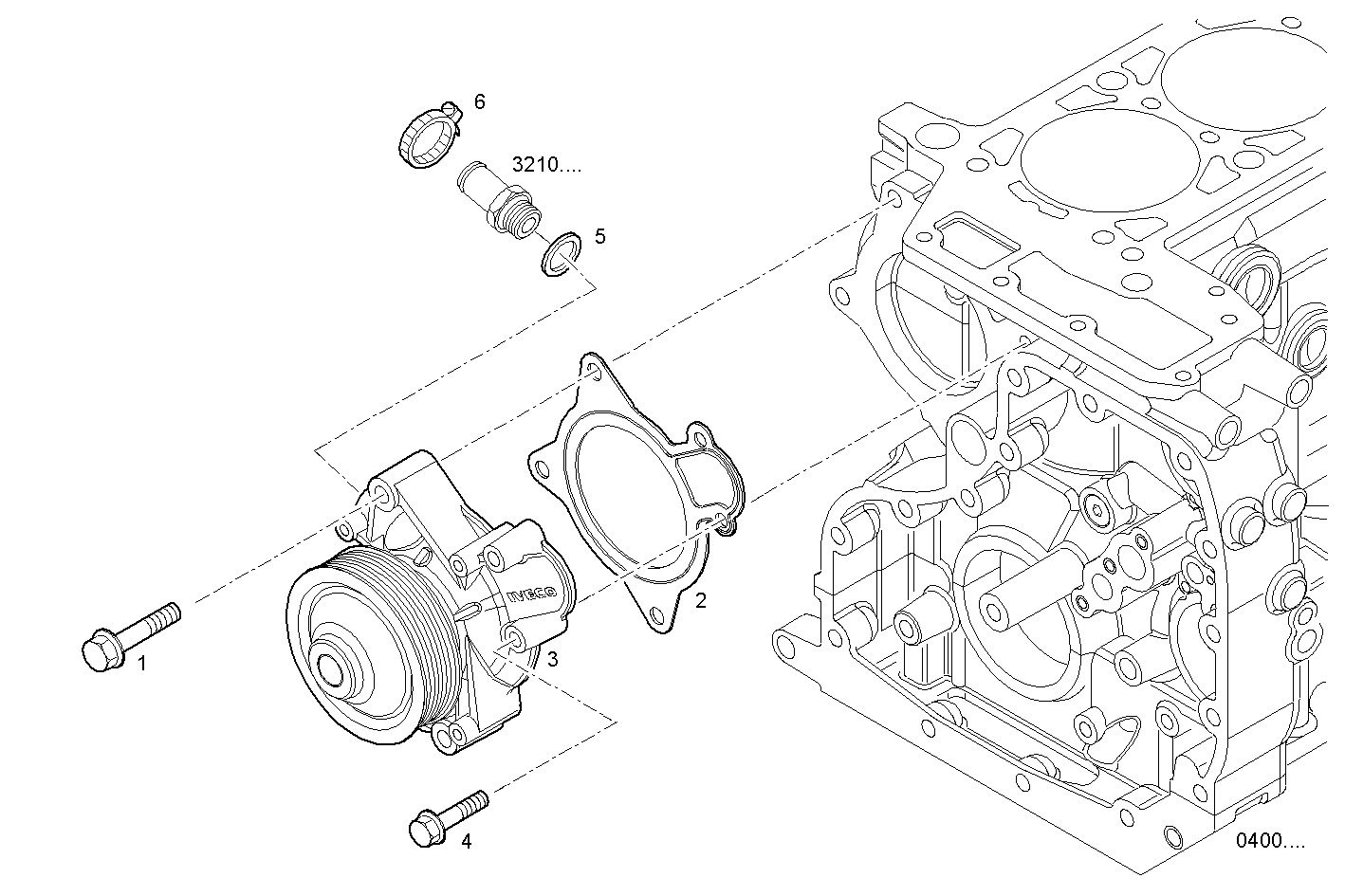

3201.015 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 16587724 | HEXAGON BOLT M10X55 MM |
| 2 | 504080013 | FLAT ENGINE GASKET |
| 3 | 504086476 | WATER PUMP ASSY |
| 4 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
| 5 | 10279560 | SEAL GASKET Ø22,2 MM |
| 6 | 17316592 | PIPE CLIP |
