S30ENTM23.10

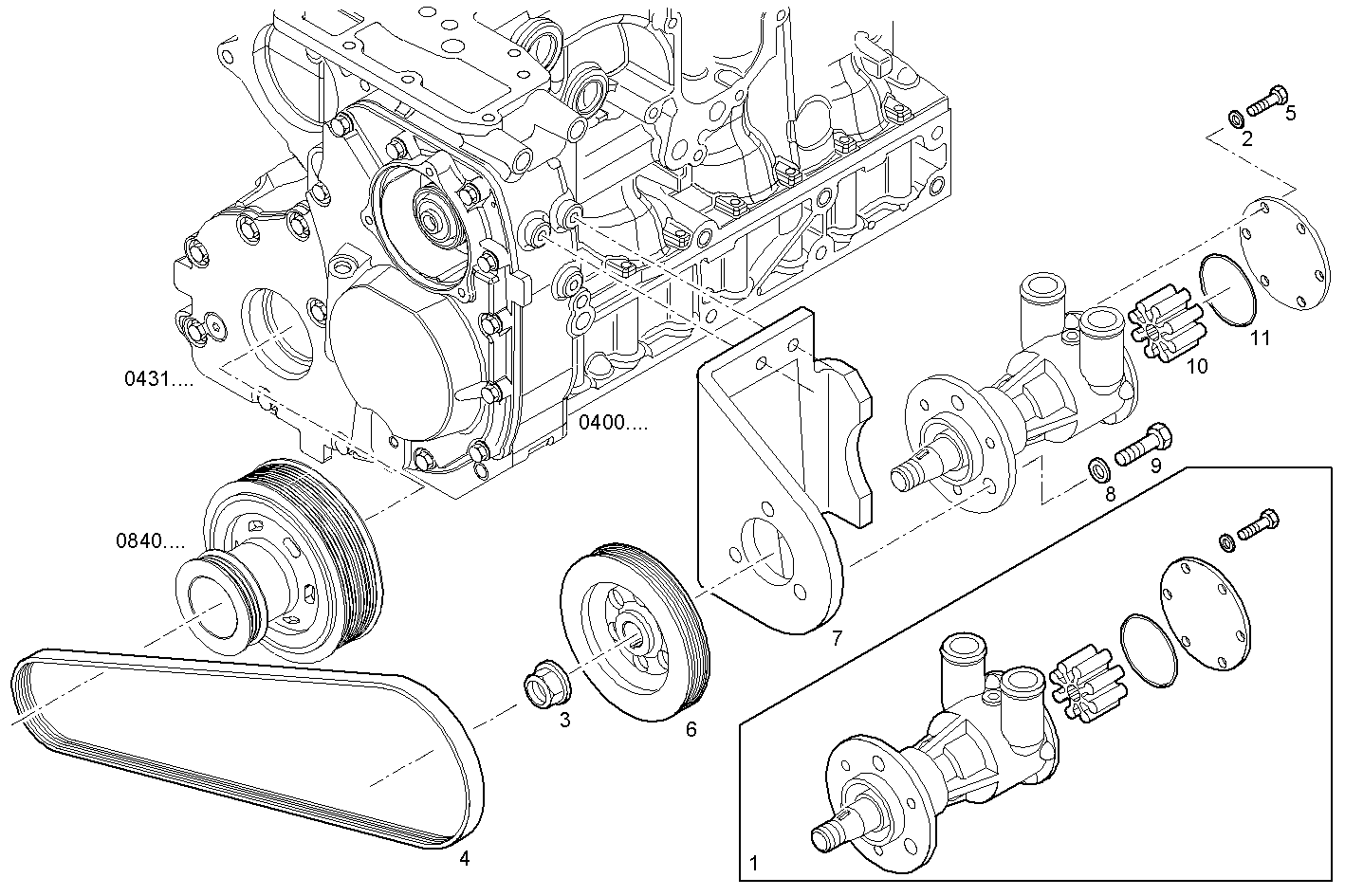

3380.048 SEA WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8040614 | SEA WATER PUMP ASSY |
| 2 | 17094814 | WASHER |
| 3 | 17045031 | HEXAGON NUT |
| 4 | 8043843 | WATER PUMP BELT |
| 5 | 16605524 | HEXAGON BOLT M8X20 MM |
| 6 | 8043835 | WATER PUMP PULLEY |
| 7 | 8043827 | SUPPORT |
| 8 | 16665604 | WASHER Ø10X20 MM |
| 9 | 11227934 | HEXAGON BOLT |
| 10 | 8038814 | SEA WATER PUMP IMPELL. |
| 11 | 8038868 | RUBBER GASKET |
