S30ENTM23.10

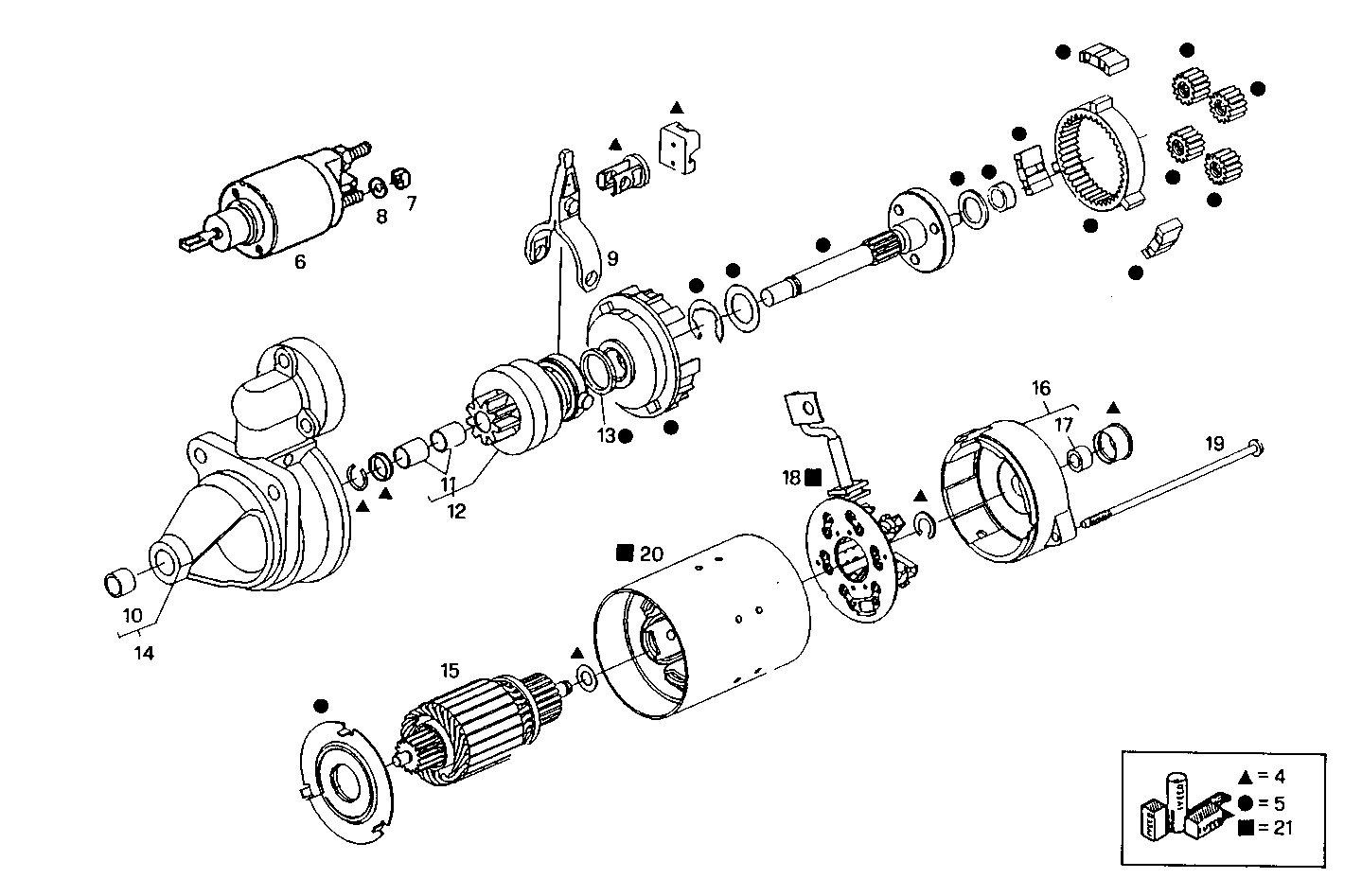

3630.042 STARTER MOTOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 4 | 9972036 | KIT-STARTER |
| 5 | 9972035 | KIT-STARTER |
| 6 | 9971804 | SOLENOID |
| 7 | 17038221 | HEXAGON NUT M10 |
| 8 | 9971894 | WASHER |
| 9 | 9971886 | LEVER |
| 10 | 9972030 | BUSH |
| 11 | 79033670 | BUSH ASSY |
| 12 | 9972026 | PINION ASSY |
| 13 | 9972037 | SPACING BAR |
| 14 | 9972027 | SUPPORT ASSY |
| 15 | 9972025 | STARTER ARMATURE |
| 16 | 9972034 | COVER ASSY |
| 17 | 9971891 | BUSH |
| 18 | 9972033 | BRUSH HOLDER ASSY |
| 19 | 9972031 | SCREW |
| 20 | 9972032 | STARTER WINDING |
| 21 | 9972038 | KIT-STARTER |
