S30ENTM23.10

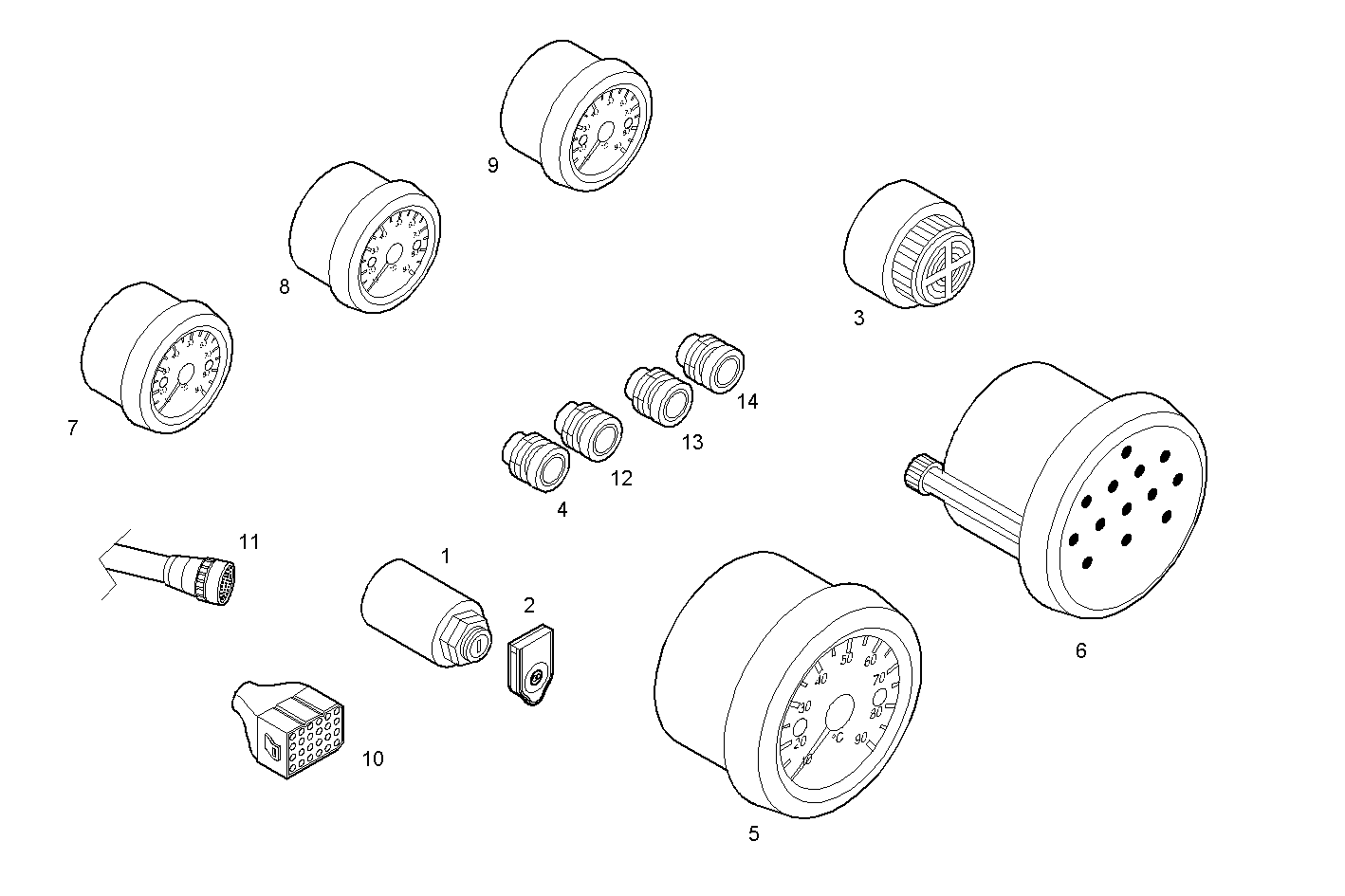

A38320503 DOUBLE INSTRUMENTS KIT - 12V -
| Item | Part number | Description |
|---|---|---|
| 1 | 8035169 | SWITCH |
| 2 | 8035172 | COVER |
| 3 | 8035166 | ACOUSTIC HORN |
| 4 | 8036498 | SWITCH ASSY |
| 5 | 8030621 | REVOLUTION COUNTER |
| 6 | 8034892 | WARNING LIGHT |
| 7 | 8030618 | THERMOMETER |
| 8 | 8030619 | PRESSURE GAUGE 10 BAR |
| 9 | 8030620 | VOLTMETER |
| 10 | 8036143 | CONNECTION |
| 11 | 8033624 | ENGINE HARNESS |
| 12 | 8036409 | PUSH BUTTON BLACK COL. |
| 13 | 8036500 | SWITCH |
| 14 | 8036499 | SWITCH |
