S30ENTM23.10

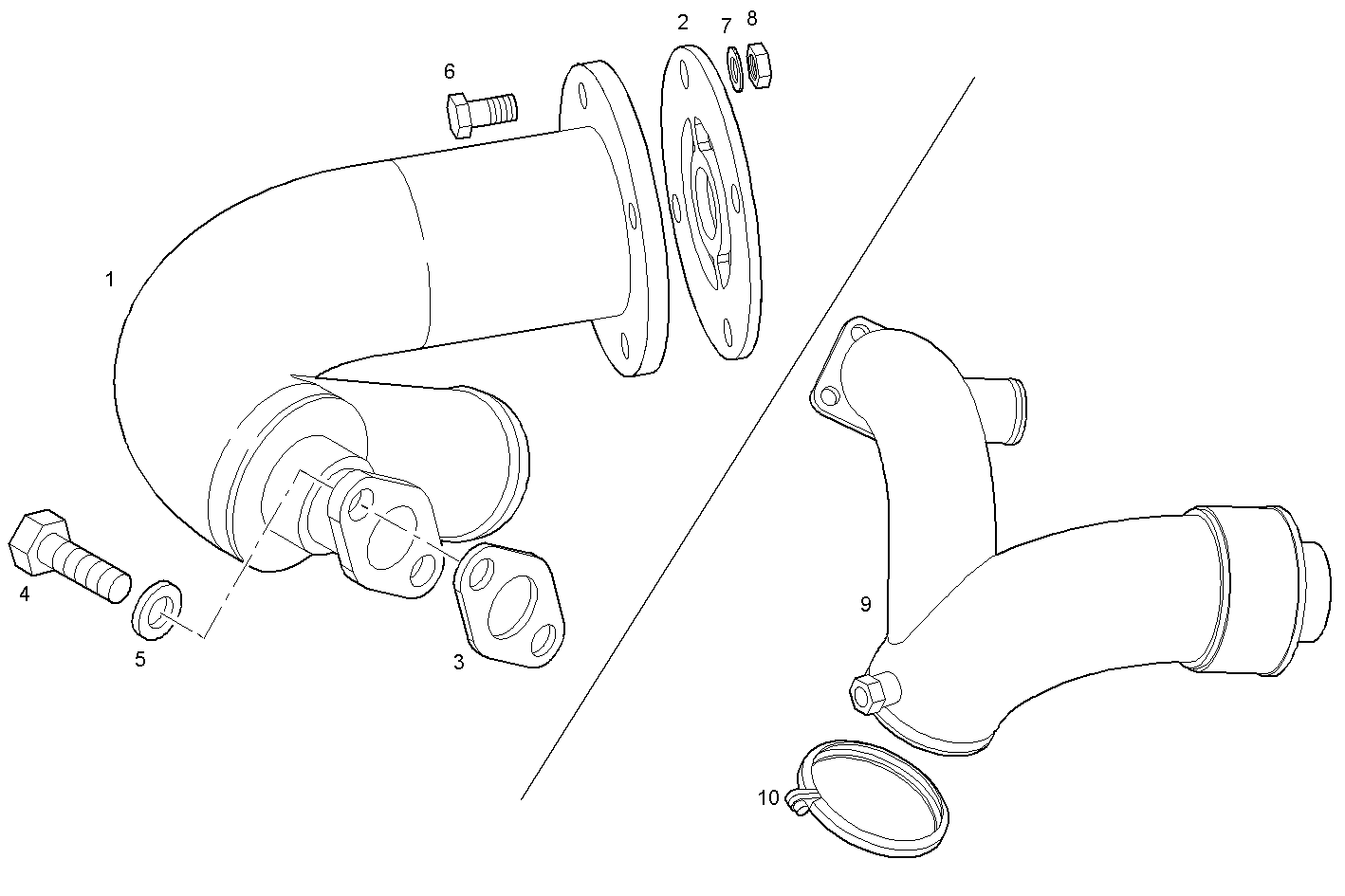

A40050518 EXHAUST PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 8042134 | MARINE EXHAUST PIPE WASTE-GATE |
| 2 | 8042257 | FLAT ENGINE GASKET |
| 3 | 8042067 | FLAT ENGINE GASKET |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
| 5 | 17094804 | WASHER Ø8X15 MM |
| 6 | 16603724 | HEXAGON BOLT M6X20 MM (8.8) |
| 7 | 17094604 | WASHER Ø6X11 MM |
| 8 | 17044621 | HEXAGON NUT M6 |
| 9 | 8042111 | MARINE EXHAUST PIPE |
| 10 | 8111053 | CLIP |
