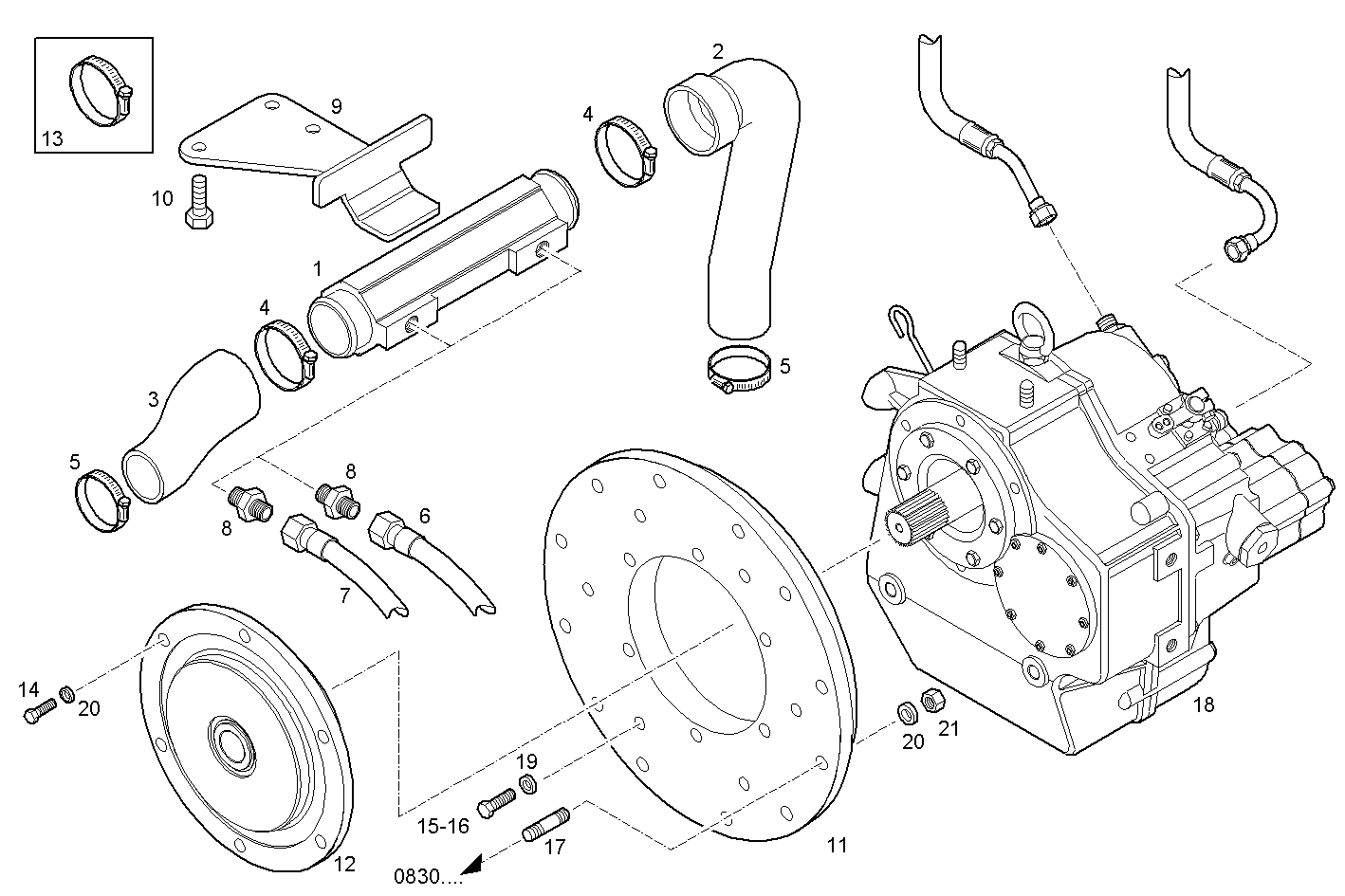

| Item |
Part number |
Description |
|
1 |
8044465 |
MARINE GEAR OIL HEAT EXCH |
|
2 |
8044444 |
RUBBER SLEEVE |
|
3 |
8044442 |
RUBBER SLEEVE |
|
4 |
17764993 |
CLIP Ø50/70 MM |
|
5 |
17764893 |
CLIP Ø40/60 MM |
|
6 |
8105620 |
HOSE |
|
7 |
4935779 |
HOSE |
|
8 |
8101073 |
PIPE SOCKET |
|
9 |
8044429 |
SUPPORT |
|
10 |
15003921 |
HEXAGON BOLT M10 |
|
11 |
8030212 |
FLANGE |
|
12 |
8043317 |
FLEXIBLE COUPLING |
|
13 |
17765093 |
CLIP Ø60/80 MM |
|
14 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
|
15 |
16609924 |
HEXAGON BOLT M12X30 MM (8.8) |
|
16 |
16610024 |
SCREW M12X35 |
|
17 |
13449521 |
STUD M10X15X25 |
|
18 |
8025873 |
MARINE GEAR 2.40:1 |
|
19 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
20 |
17095004 |
WASHER Ø10X18X2 MM |
|
21 |
17038121 |
HEXAGON NUT M10 |
