S30ENTM23.10

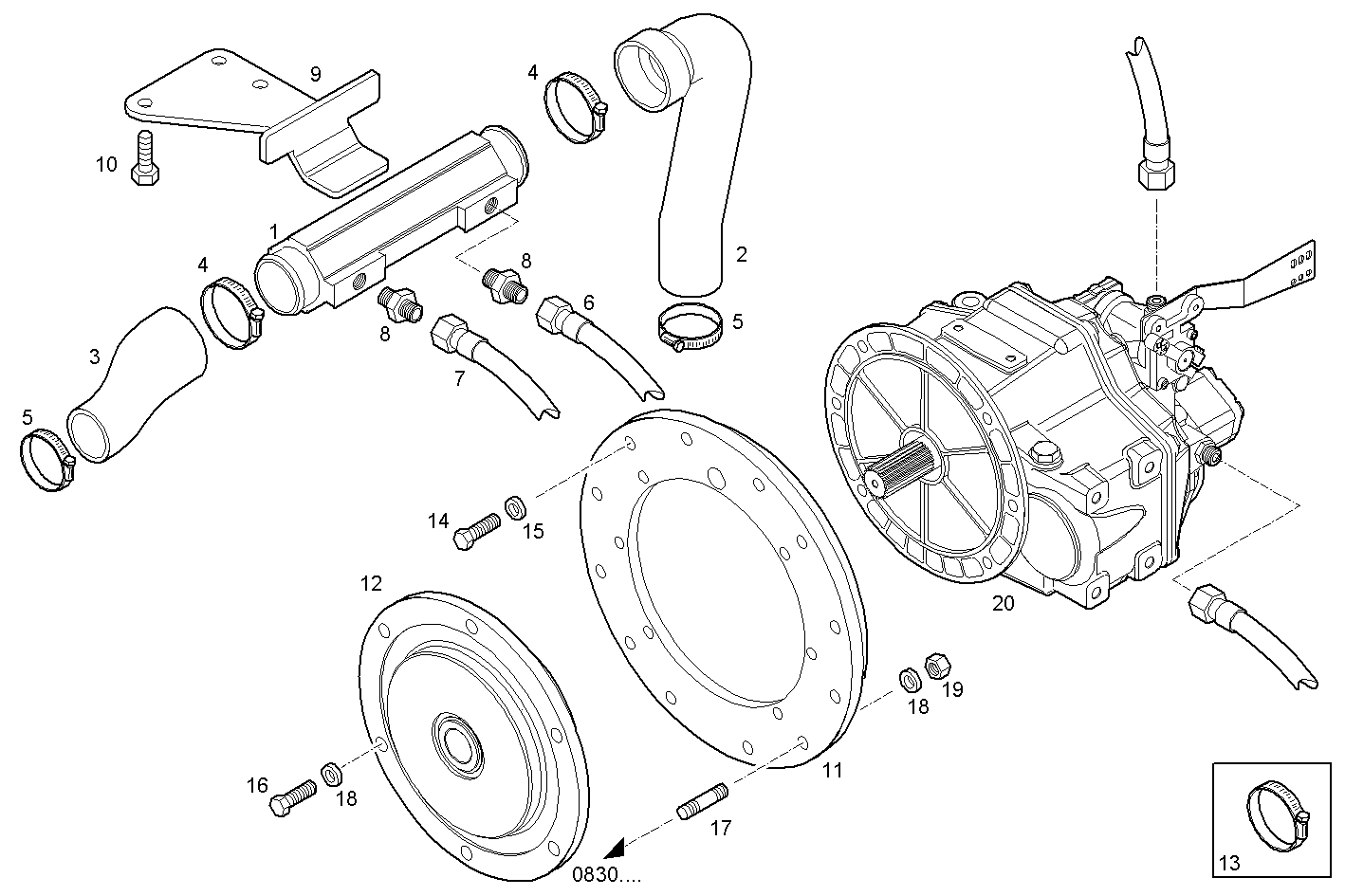

A51400501 MARINE GEAR TECHNODRIVE TM 485 A - ratio 1.51:1
Item | Part number | Description |
---|---|---|
1 | 8044465 | MARINE GEAR OIL HEAT EXCH |
2 | 8044444 | RUBBER SLEEVE |
3 | 8044442 | RUBBER SLEEVE |
4 | 17764993 | CLIP Ø50/70 MM |
5 | 17764893 | CLIP Ø40/60 MM |
6 | 8105620 | HOSE |
7 | 4935779 | HOSE |
8 | 8101073 | PIPE SOCKET |
9 | 8044429 | SUPPORT |
10 | 15003921 | HEXAGON BOLT M10 |
11 | 8047466 | FLANGE |
12 | 8043317 | FLEXIBLE COUPLING |
13 | 17765093 | CLIP Ø60/80 MM |
14 | 16607734 | HEXAGON BOLT M10X30 MM |
15 | 17494934 | WASHER Ø10X18,1X2,2 MM |
16 | 16607625 | SCREW M10X25 |
17 | 16731124 | STUD M10X20 |
18 | 17095004 | WASHER Ø10X18X2 MM |
19 | 17038131 | HEXAGON NUT M10 |
20 | 8047478 | MARINE GEAR 1.51:1 |
