S30ENTM23.10

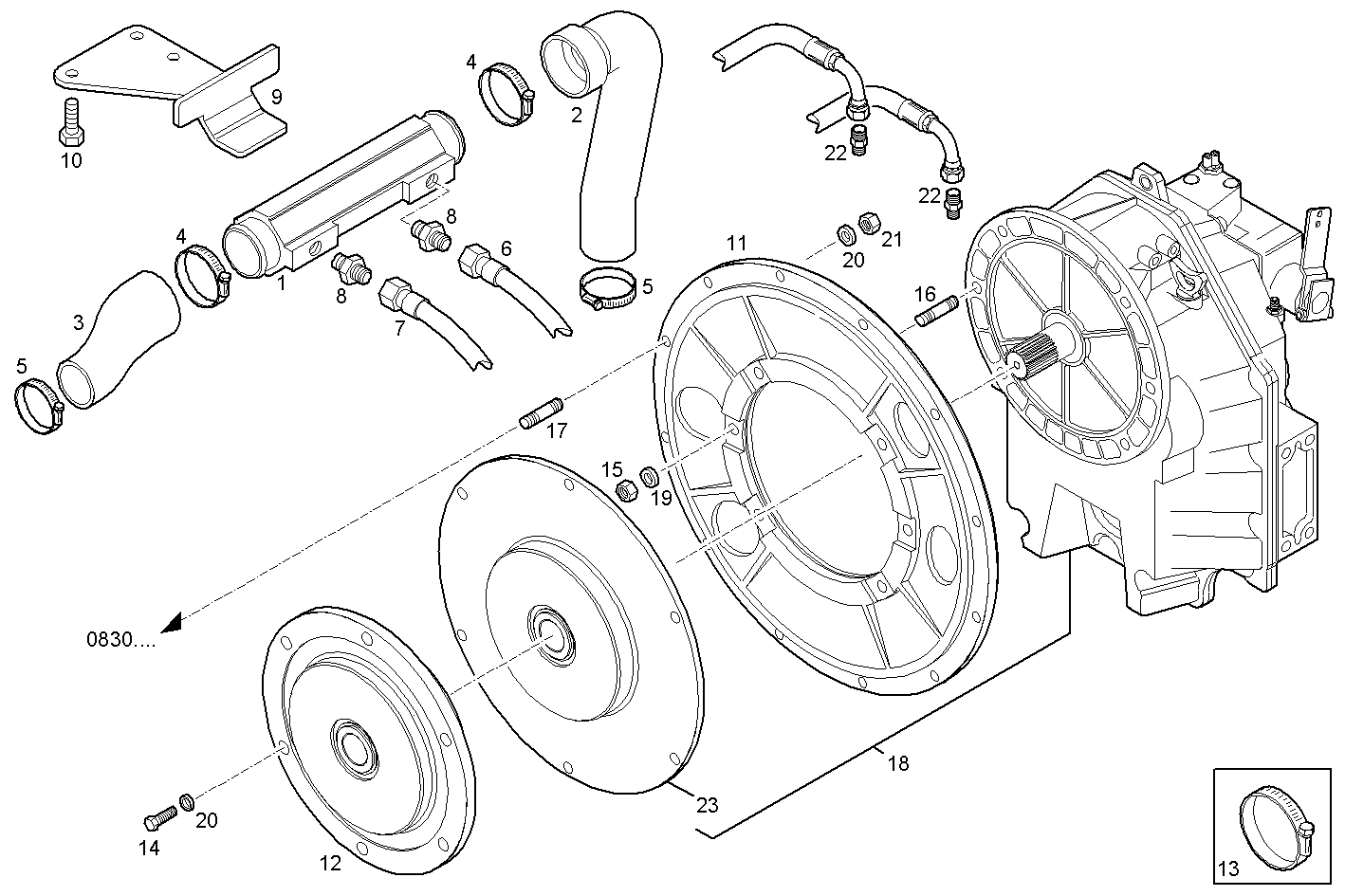

A51900504 MARINE GEAR - ZF 63 IV ratio 1.29:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8044465 | MARINE GEAR OIL HEAT EXCH |
| 2 | 8044444 | RUBBER SLEEVE |
| 3 | 8044442 | RUBBER SLEEVE |
| 4 | 17764993 | CLIP Ø50/70 MM |
| 5 | 17764893 | CLIP Ø40/60 MM |
| 6 | 8108735 | OIL HOSE |
| 7 | 8108736 | OIL HOSE |
| 8 | 8101073 | PIPE SOCKET |
| 9 | 8044429 | SUPPORT |
| 10 | 15003921 | HEXAGON BOLT M10 |
| 11 | 8114151 | FLANGE |
| 12 | 8043317 | FLEXIBLE COUPLING |
| 13 | 17765093 | CLIP Ø60/80 MM |
| 14 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 15 | 17038221 | HEXAGON NUT M10 |
| 16 | 13546324 | STUD M10X20X25 |
| 17 | 16731224 | STUD M10X25 MM |
| 18 | 8040064 | MARINE GEAR 1.29:1 |
| 19 | 17090174 | SPRING WASHER Ø10X20 MM |
| 20 | 17095004 | WASHER Ø10X18X2 MM |
| 21 | 17038131 | HEXAGON NUT M10 |
| 22 | 4935465 | PIPE SOCKET |
| 23 | 8019065 | FLEXPLATE |
