S30ENTM23.10

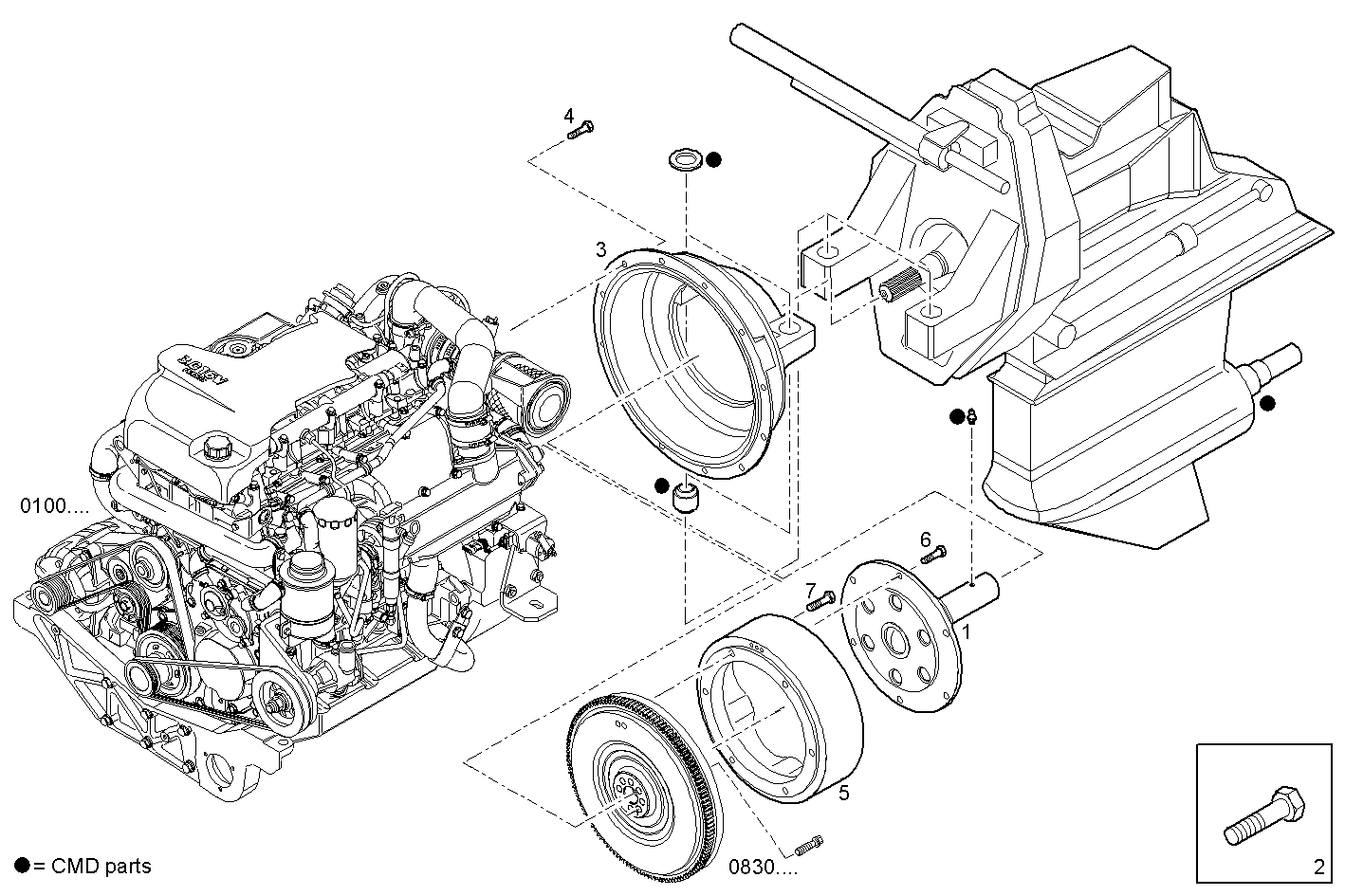

A53150508 STERN DRIVE - Bravo One X Plus rap 1,50:1
Item | Part number | Description |
---|---|---|
1 | 8050470 | FLEXIBLE COUPLING |
2 | 16587625 | HEXAGON BOLT M10X50 MM |
3 | 8050486 | FLANGE |
4 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
5 | 8050367 | SPACING BAR |
6 | 16675835 | HEXAGON BOLT M10X30 MM |
7 | 16587325 | HEXAGON BOLT M10X35 MM |
