V08ENTM11.10C210

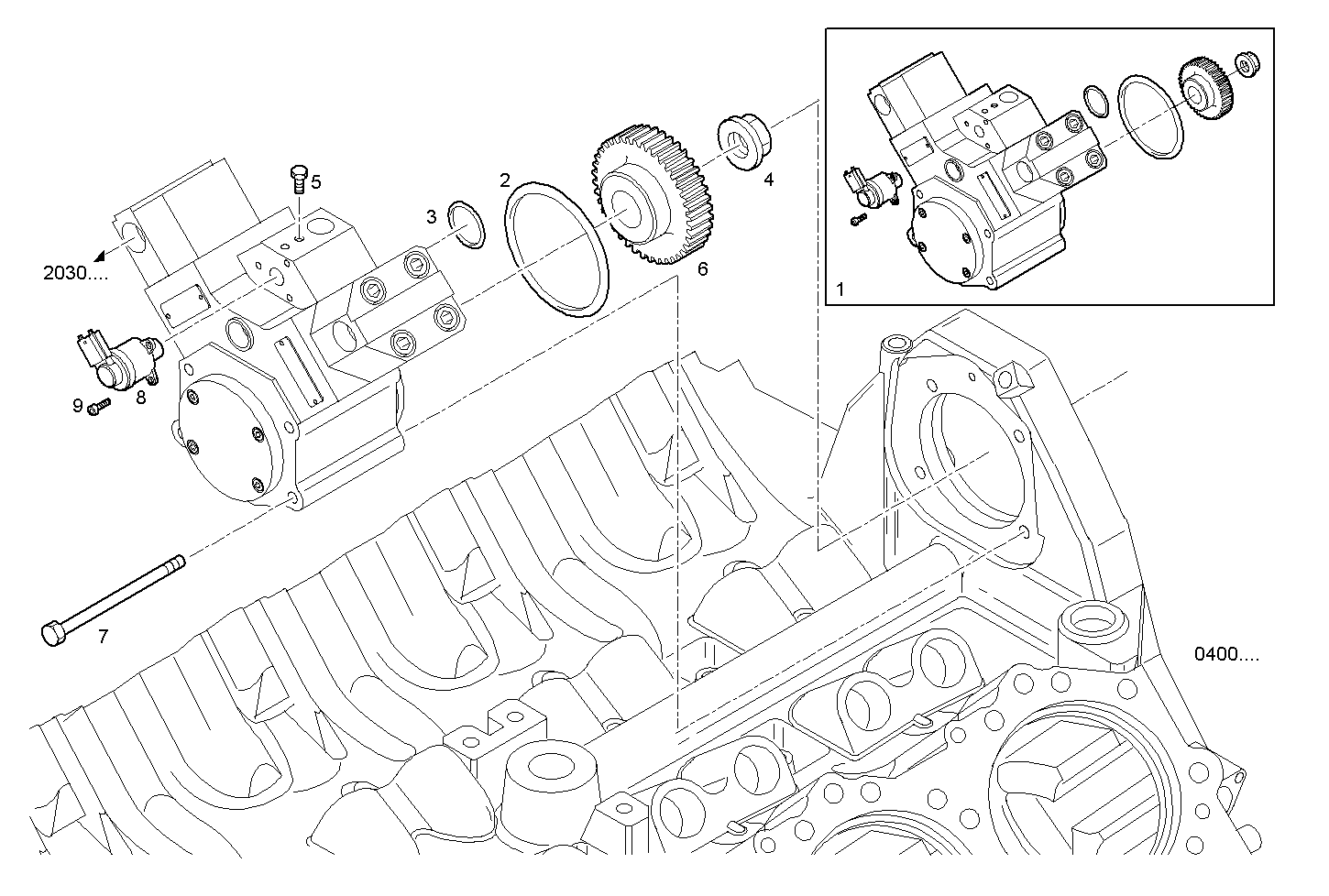

2010.055 FUEL PUMP - high pressure
| Item | Part number | Description |
|---|---|---|
| 1 | 504195334 | HIGH PRESSURE PUMP ASSY |
| 2 | 504060294 | SEAL GASKET |
| 3 | 504060293 | SEAL GASKET |
| 4 | 500392673 | HEXAGON NUT M24X1,5 |
| 5 | 16592225 | HEXAGON BOLT M8X55 MM |
| 6 | 504036032 | GEAR |
| 7 | 16677435 | HEXAGON BOLT M10X1,5X130 MM |
| 8 | 8094801 | GOVERNOR/REGULATOR |
| 9 | 8094795 | SOCKET-HEAD SCREW |
