V08ENTM11.10C210

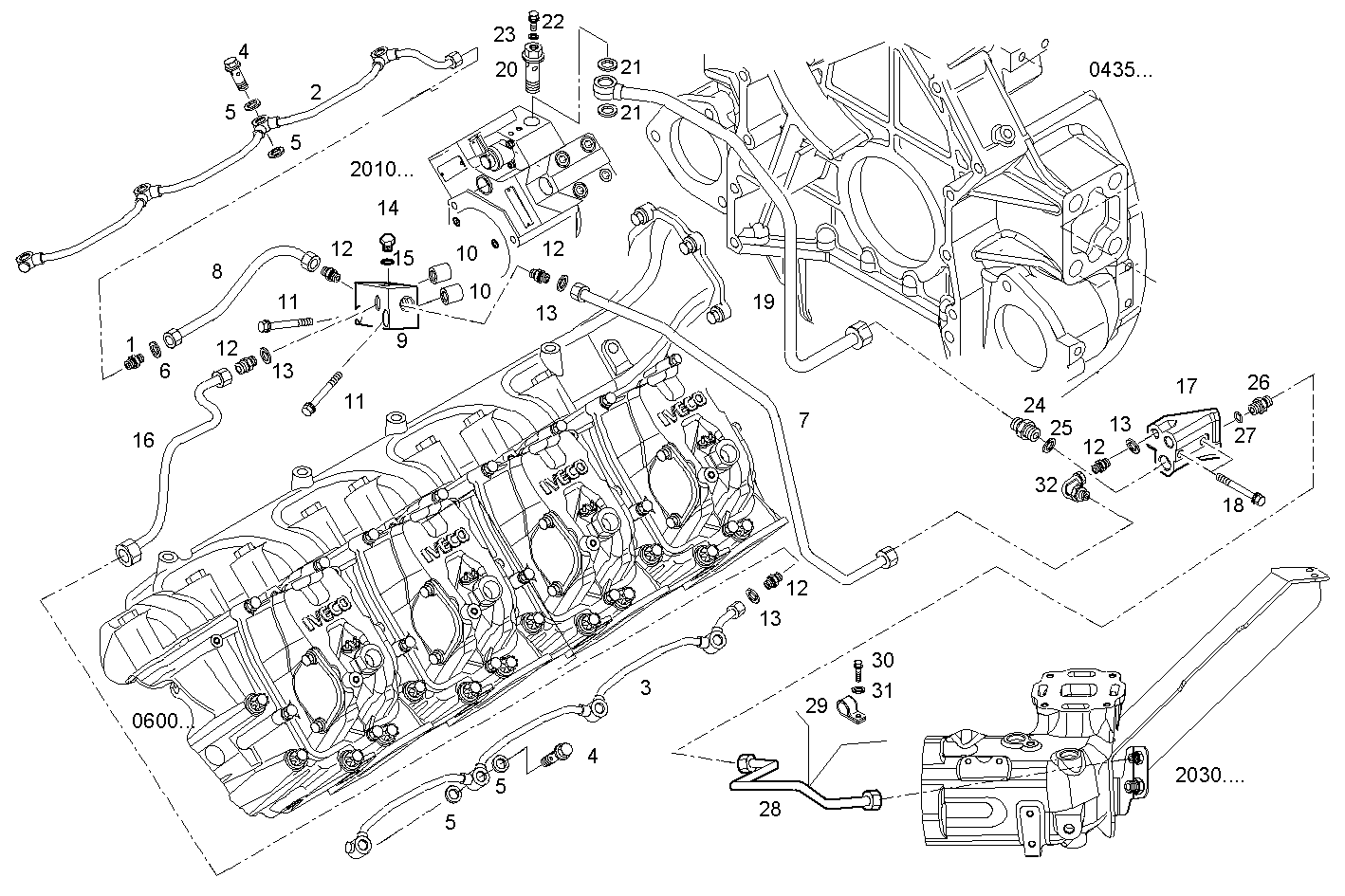

2030.285 FUEL LINES - fuel return to tank

Iveco/FPT FUEL LINES

Item Part number Description
1 504074830 PIPE SOCKET M18
2 504071550 FUEL LINE RIGHT
3 504071551 FUEL LINE LEFT
4 504034362 SCREW CONNECTOR M10X1,5
5 98474305 WASHER Ø10X17 MM SP=2,3
6 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
7 8042102 FUEL LINE
8 8044062 FUEL LINE
9 8042088 CHOCK
10 17816314 SPACING BAR Ø8,5X18 MM SP=15 MM
11 16690924 CYLIND-HEAD SCREW M8X40 MM
12 16500114 THREADED UNION M12X1,5 - M14X1,5
13 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
14 10300611 LOCK PLUG M14X1,5
15 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
16 8042105 FUEL LINE
17 504074653 CHOCK
18 16592525 HEXAGON BOLT M8X70 MM
19 504074230 FUEL LINE fuel return line
20 504121629 SCREW CONNECTOR
21 99469378 WASHER Ø22X30 MM
22 504144621 THREADED PLUG M12X1
24 16500514 THREADED UNION M22X1,5 - M26X1,5
25 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
26 16500214 THREADED UNION M14X1,5/M16X1,5
28 8042331 FUEL LINE
29 17316490 CLIP
30 16605524 HEXAGON BOLT M8X20 MM
31 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
32 16503914 ELBOW COUPLING M14X1,5
