V08ENTM11.10C210

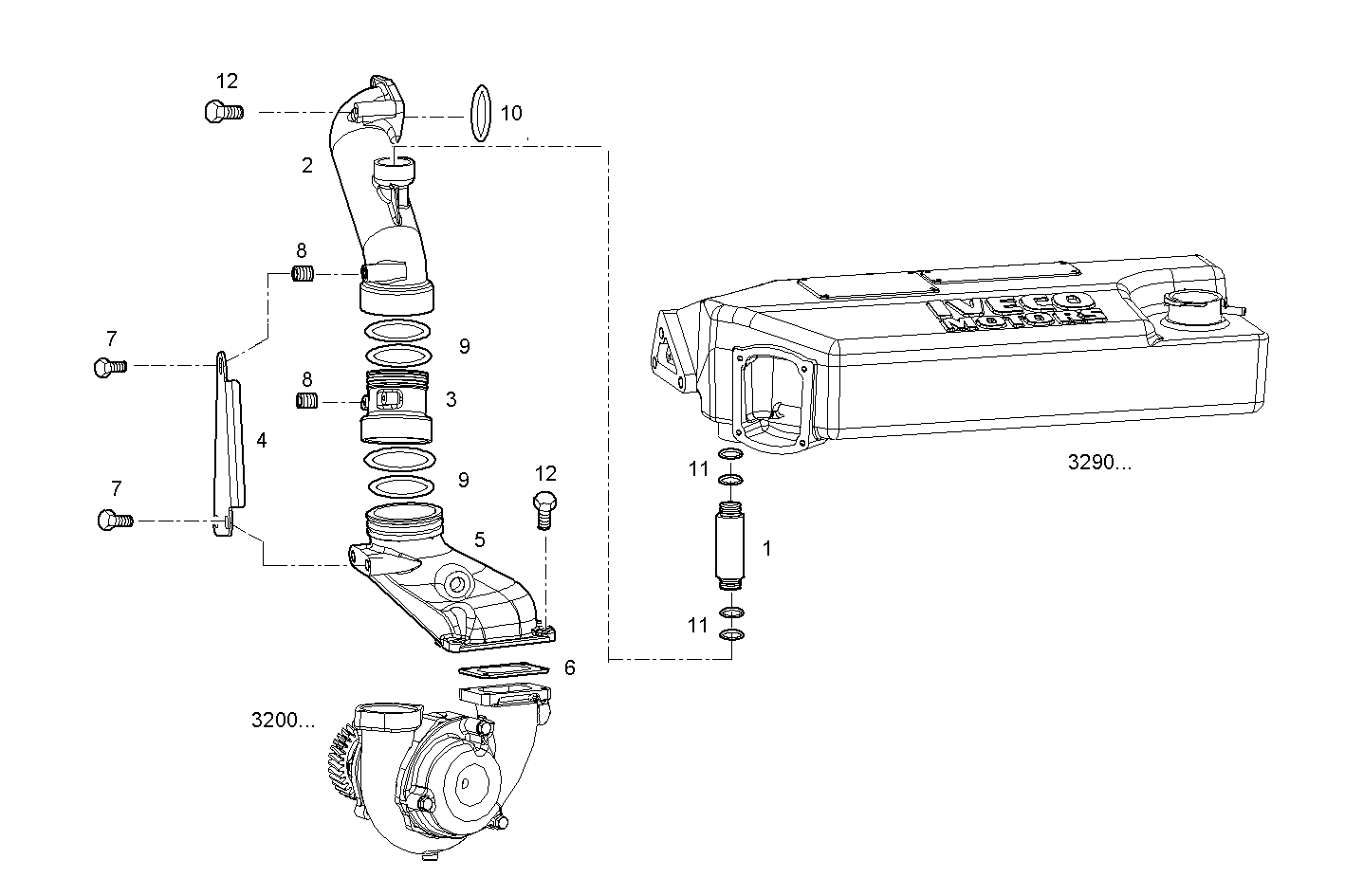

3210.321 WATER LINES - water inlet to pump
Item | Part number | Description |
---|---|---|
1 | 8039303 | CONNECTION PIPE |
2 | 8039170 | WATER PIPE |
3 | 8039077 | WATER PIPE |
4 | 8039072 | RETAINER |
5 | 8038377 | CONNECTION PIPE |
6 | 8010667 | GASKET |
7 | 18139424 | HEXAGON BOLT M10X20 MM |
8 | 17873371 | THREADED INSERT M10X1,5 |
9 | 17290781 | O-RING Ø78,97X3,53 MM |
10 | 17290681 | O-RING Ø75,79X3,53 MM |
11 | 17289281 | O-RING Ø34,5 MM SP=3,53 MM |
12 | 16673735 | HEXAGON BOLT M8X25 MM |
