V08ENTM11.10C210

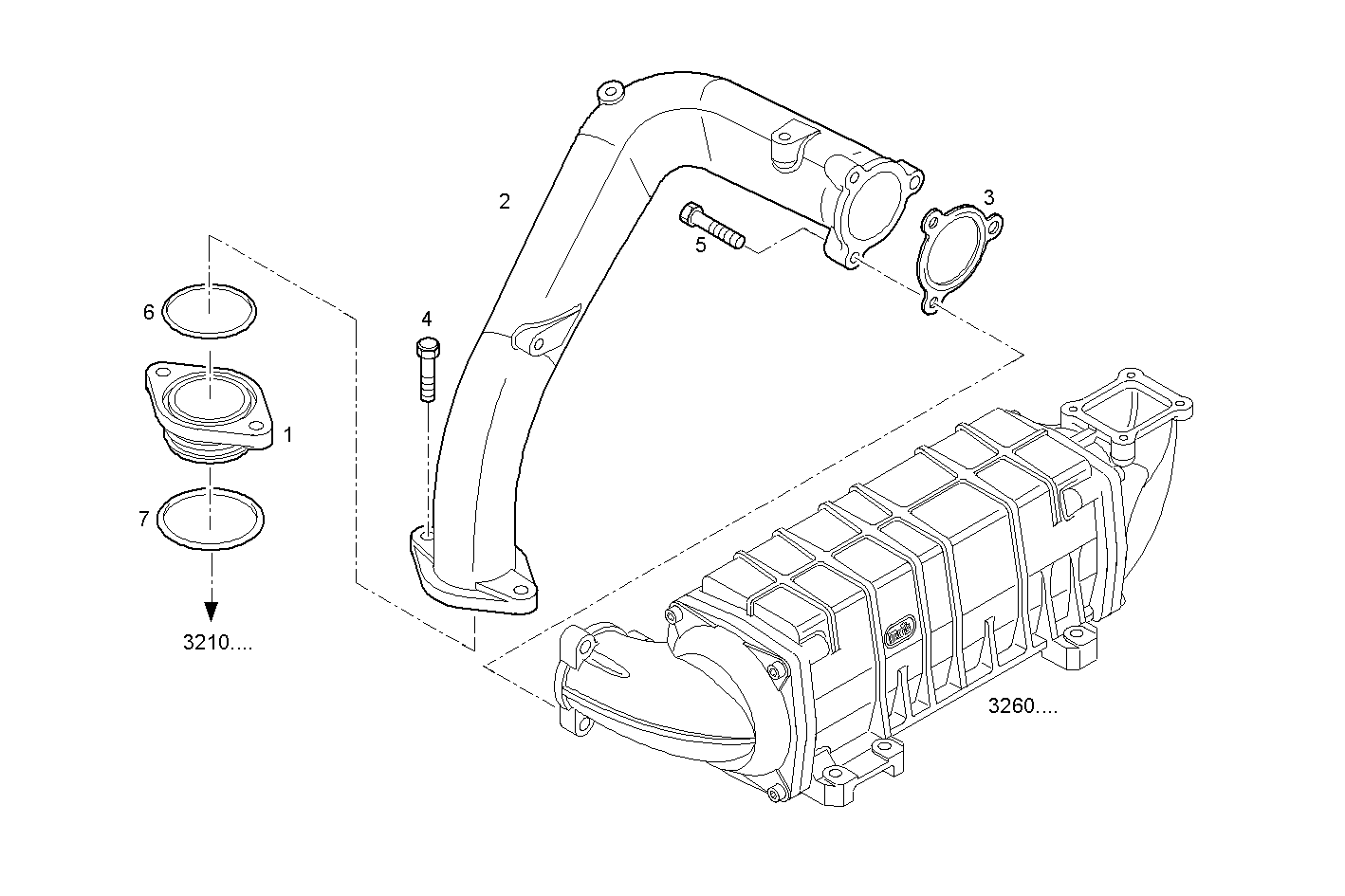

3210.335 WATER LINES - from dx pump to oil heat exchanger
| Item | Part number | Description |
|---|---|---|
| 1 | 504055352 | WATER PIPE |
| 2 | 504064587 | WATER PIPE |
| 3 | 504039293 | FLAT ENGINE GASKET |
| 4 | 16673735 | HEXAGON BOLT M8X25 MM |
| 5 | 16673835 | HEXAGON BOLT M8X30 MM |
| 6 | 17290581 | O-RING Ø72,63X3,53 MM |
| 7 | 17296480 | O-RING Ø5,33X69,21 MM |
