V08ENTM11.10C210

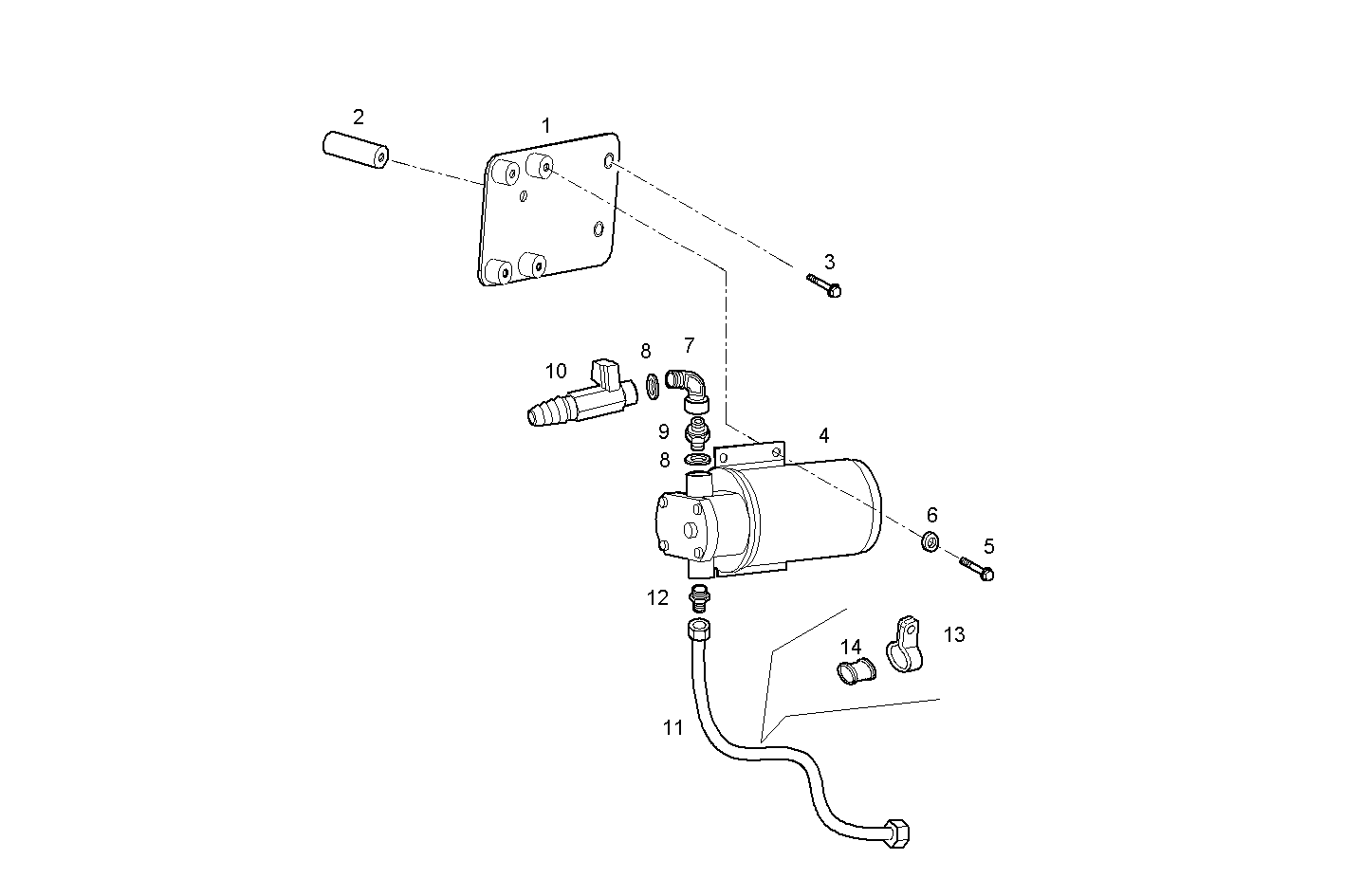

5510.059 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8042402 | SUPPORT |
| 2 | 17817214 | SPACING BAR |
| 3 | 16046221 | HEXAGON BOLT M8X1,25X150 MM |
| 4 | 8032366 | OIL DRAIN ELECTRIC PUMP |
| 5 | 16603677 | HEXAGON BOLT M6X16 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 8011422 | PIPE SOCKET Ø3/8''/M22 MM |
| 8 | 11270460 | GASKET Ø17X21X1,5 MM |
| 9 | 8034440 | THREADED UNION |
| 10 | 8113932 | DRAIN COCK |
| 11 | 8042338 | OIL LINE |
| 12 | 41031572 | THREADED UNION |
| 13 | 4763804 | FASTENING BRACKET |
| 14 | 4757122 | RUBBER PAD |
