V08ENTM11.10P210

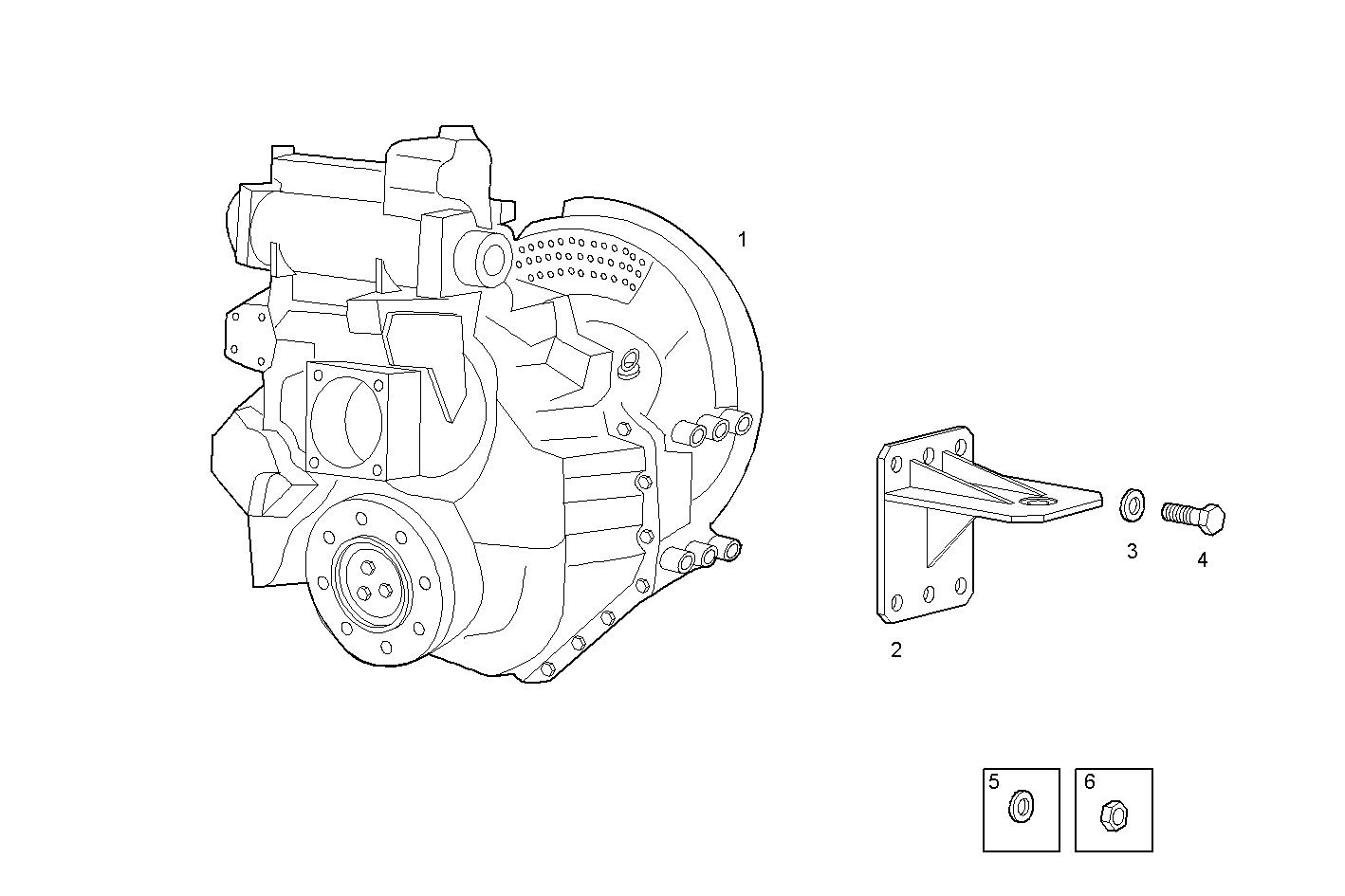

A51124501/02 MARINE GEAR - MG 5135-A
Item | Part number | Description |
---|---|---|
1 | 8047793 | MARINE GEAR |
2 | 8047774 | SUPPORT |
3 | 17092774 | WASHER Ø20X38X4,6 MM |
4 | 16617124 | HEXAGON BOLT M20X2,5X45 MM |
5 | 17090174 | SPRING WASHER Ø10X20 MM |
6 | 17038131 | HEXAGON NUT M10 |
