V08ENTM11.10R210

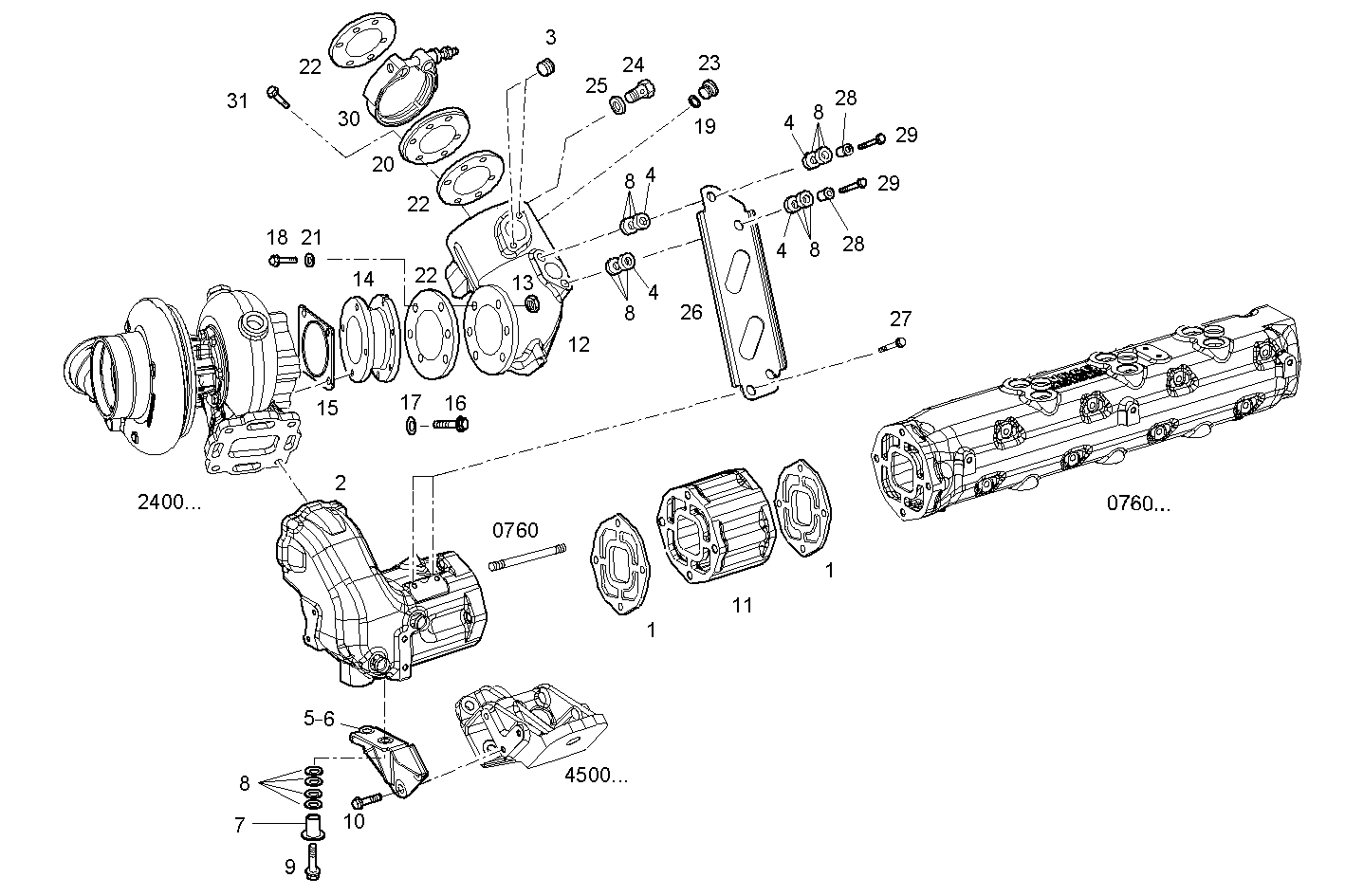

2420.252 SUPERCHARGING LINES - exhaust cooled manifolds

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8042414 EXH. MANIFOLD GKT
2 8042415 EXHAUST COOL. ELBOW
3 17873271 THREADED INSERT M8
4 17095224 WASHER Ø12X20 MM
5 8043057 FASTENING BRACKET LEFT
6 8043088 FASTENING BRACKET RIGHT
7 8110050 BUSH
8 8110051 SPRING
9 16587425 HEXAGON BOLT M10X40 MM
10 16587125 HEXAGON BOLT M10X25 MM
11 8042418 SPACING BAR
12 8043293 EXHAUST COOL. ELBOW
13 17308831 LOCKING NUT
14 8043295 SPACING BAR
15 8039361 FLAT ENGINE GASKET
16 17456634 LOCKING SCREW
17 16665614 WASHER Ø10,5 MM
18 17455234 HEXAGON BOLT M8X30 MM
19 99489019 WASHER Ø16X24 MM SP=1,5 MM
20 8040247 FLANGE
21 16666724 WASHER
22 8009600 GASKET
23 16992411 THREADED PLUG M16X1,5
24 16500114 THREADED UNION M12X1,5 - M14X1,5
25 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
26 8042744 FASTENING BRACKET
27 16673735 HEXAGON BOLT M8X25 MM
28 8042748 SPACING BAR
29 16586625 HEXAGON BOLT M8X35 MM
30 8040248 CLIP
31 16690824 CYLIND-HEAD SCREW M8X35 MM
