V08ENTM12.10A210

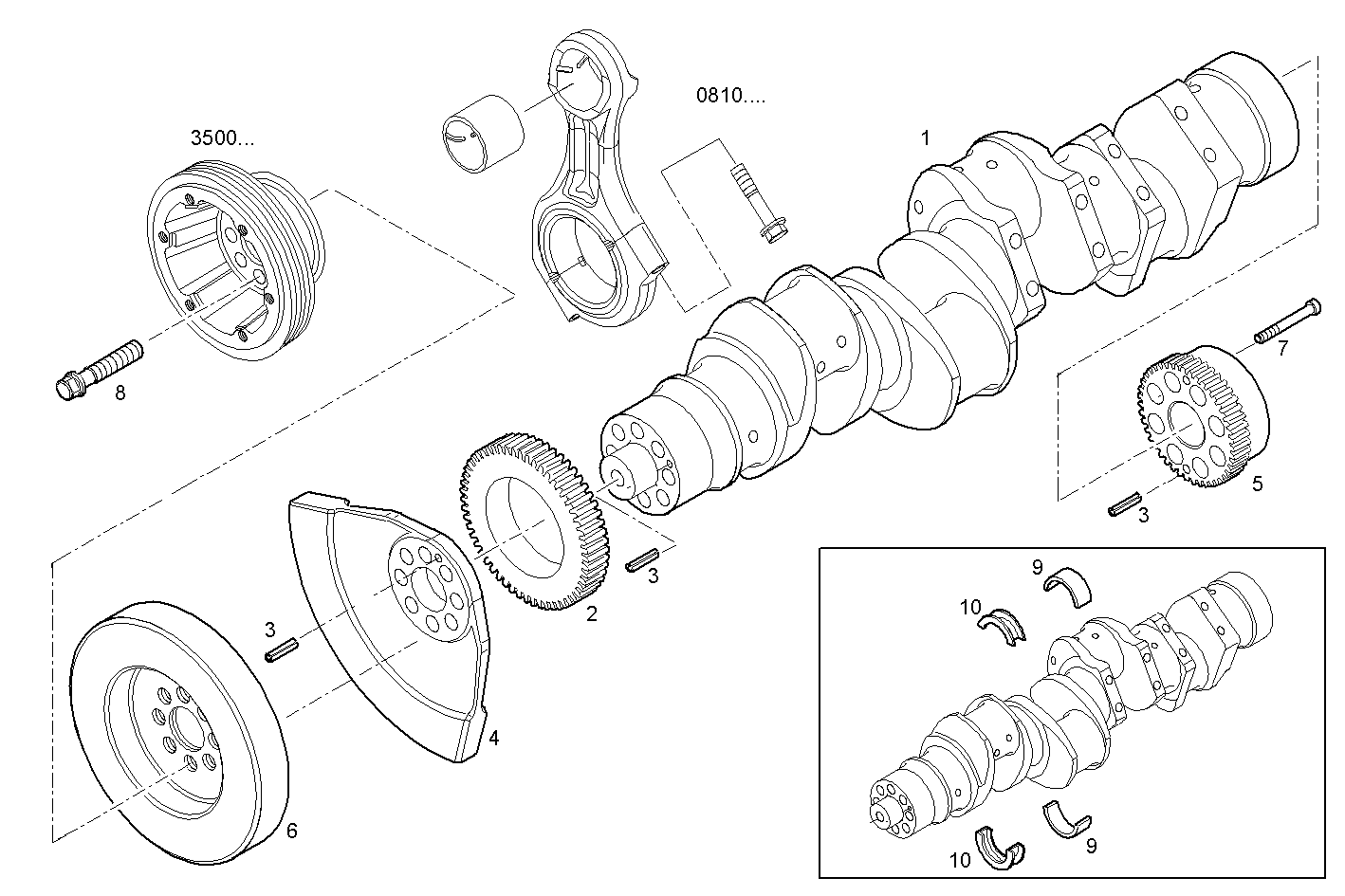

0801.041 CRANK SHAFT
| Item | Part number | Description |
|---|---|---|
| 1 | 504022670 | CRANK SHAFT |
| 2 | 504037326 | GEAR |
| 3 | 17258774 | DOWEL PIN |
| 4 | 504100918 | FLANGE balancing weight |
| 5 | 504036030 | GEAR |
| 6 | 504097145 | VIBRATION DAMPER |
| 7 | 16691624 | CYLIND-HEAD SCREW M8X80 MM |
| 8 | 4822503 | SCREW |
| 9 | 8097571 | MAIN BEARING SET STD |
| 10 | 8093825 | THRUSTRING SET STD |
