V08ENTM12.10A210

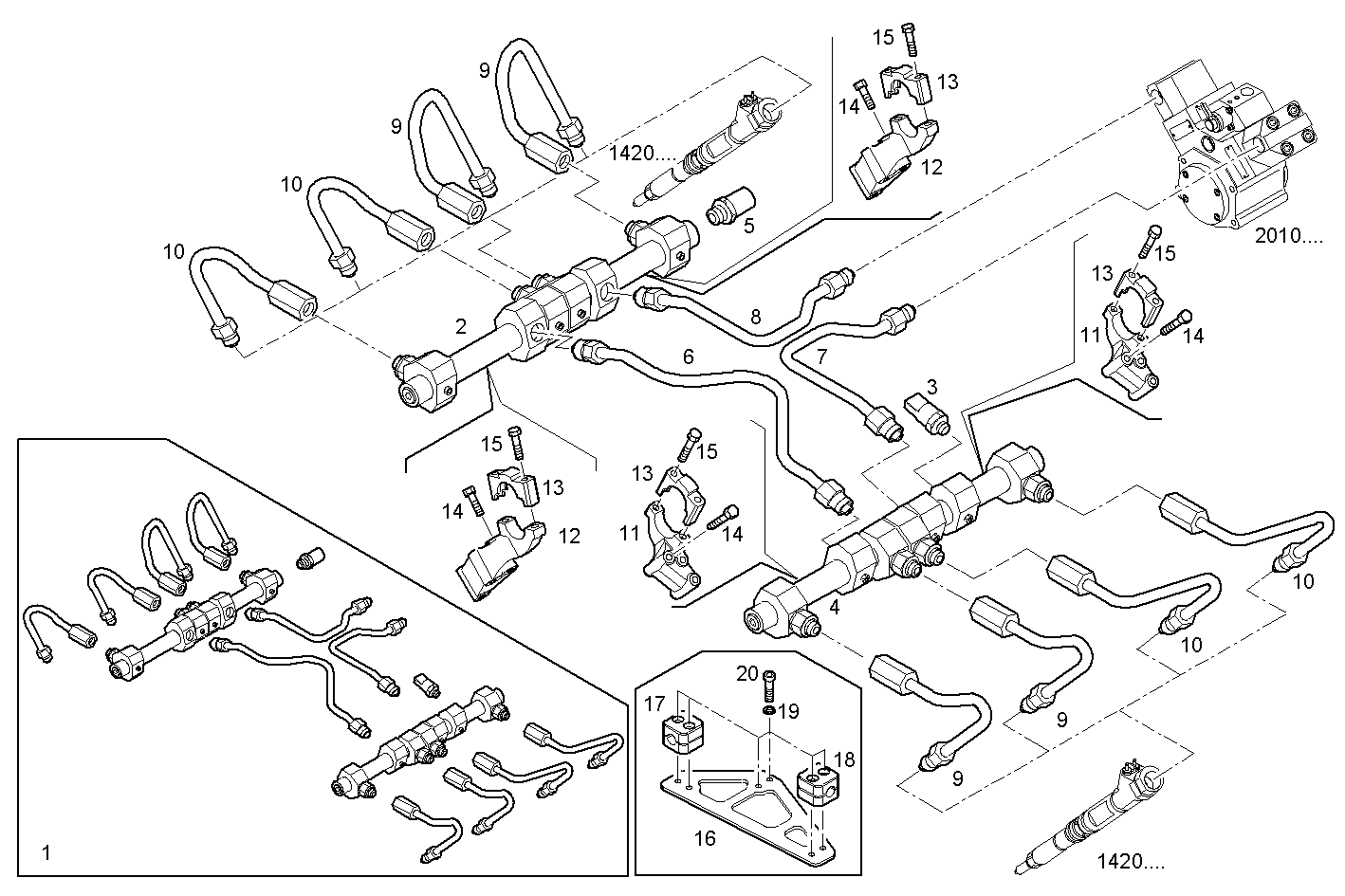

2020.149 INJECTION PIPES - high pressure system
| Item | Part number | Description |
|---|---|---|
| 1 | 8040471 | INJECTION LINE SET |
| 2 | 8040473 | HYDRAULIC CYLINDER LEFT |
| 3 | 504043154 | SENSOR |
| 4 | 8040475 | HYDRAULIC CYLINDER RIGHT |
| 5 | 504043158 | VALVE |
| 6 | 504119482 | INJECTION LINE |
| 7 | 504119483 | INJECTION LINE |
| 8 | 504119484 | INJECTION LINE |
| 9 | 504119485 | INJECTION LINE |
| 10 | 504119486 | INJECTION LINE |
| 11 | 504080479 | SUPPORT RIGHT ASSY |
| 12 | 504080488 | SUPPORT LEFT ASSY |
| 13 | 504039185 | COVER |
| 14 | 16586924 | HEXAGON BOLT M8X50 MM |
| 15 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 16 | 504097534 | SUPPORT |
| 17 | 504097548 | CHOCK |
| 18 | 504097549 | CHOCK |
| 19 | 17094611 | WASHER |
| 20 | 16689425 | SOCKET-HEAD SCREW |
