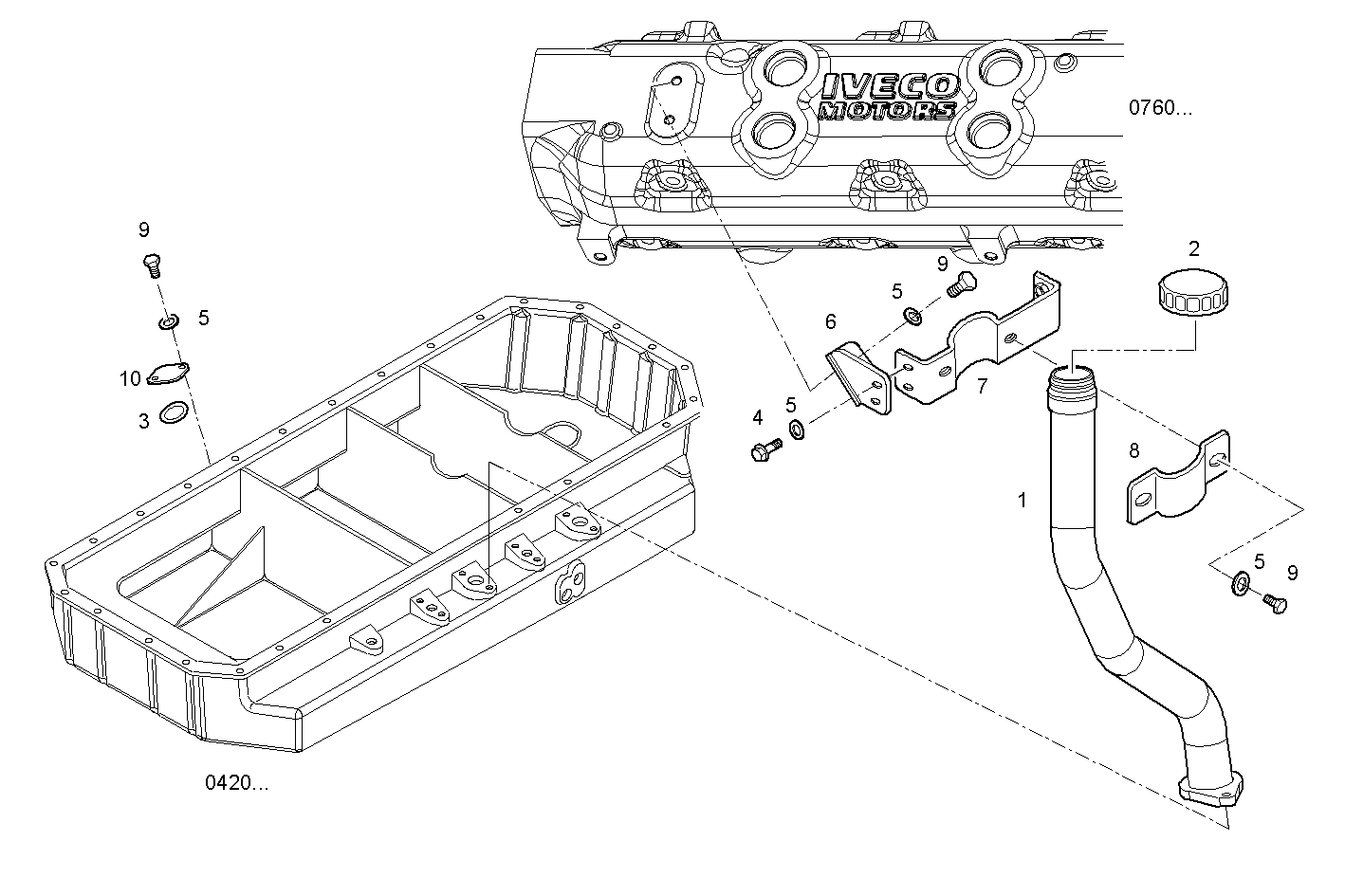

2700.003 OIL DIPSTICK & FILLER PIPE - oil filler neck

Iveco/FPT OIL DIPSTICK & FILLER PIPE

Item Part number Description
1 8043087 OIL FILLER PIPE
2 98429552 OIL FILLER PLUG
3 17289881 O-RING Ø50,3 MM SP=3,5 MM
4 16605624 HEXAGON BOLT M8X25 MM (8.8)
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 8041233 FASTENING BRACKET
7 8043174 RETAINER
8 8043185 RETAINER
9 16605524 HEXAGON BOLT M8X20 MM
10 8041327 FLANGE
