V08ENTM12.10A210

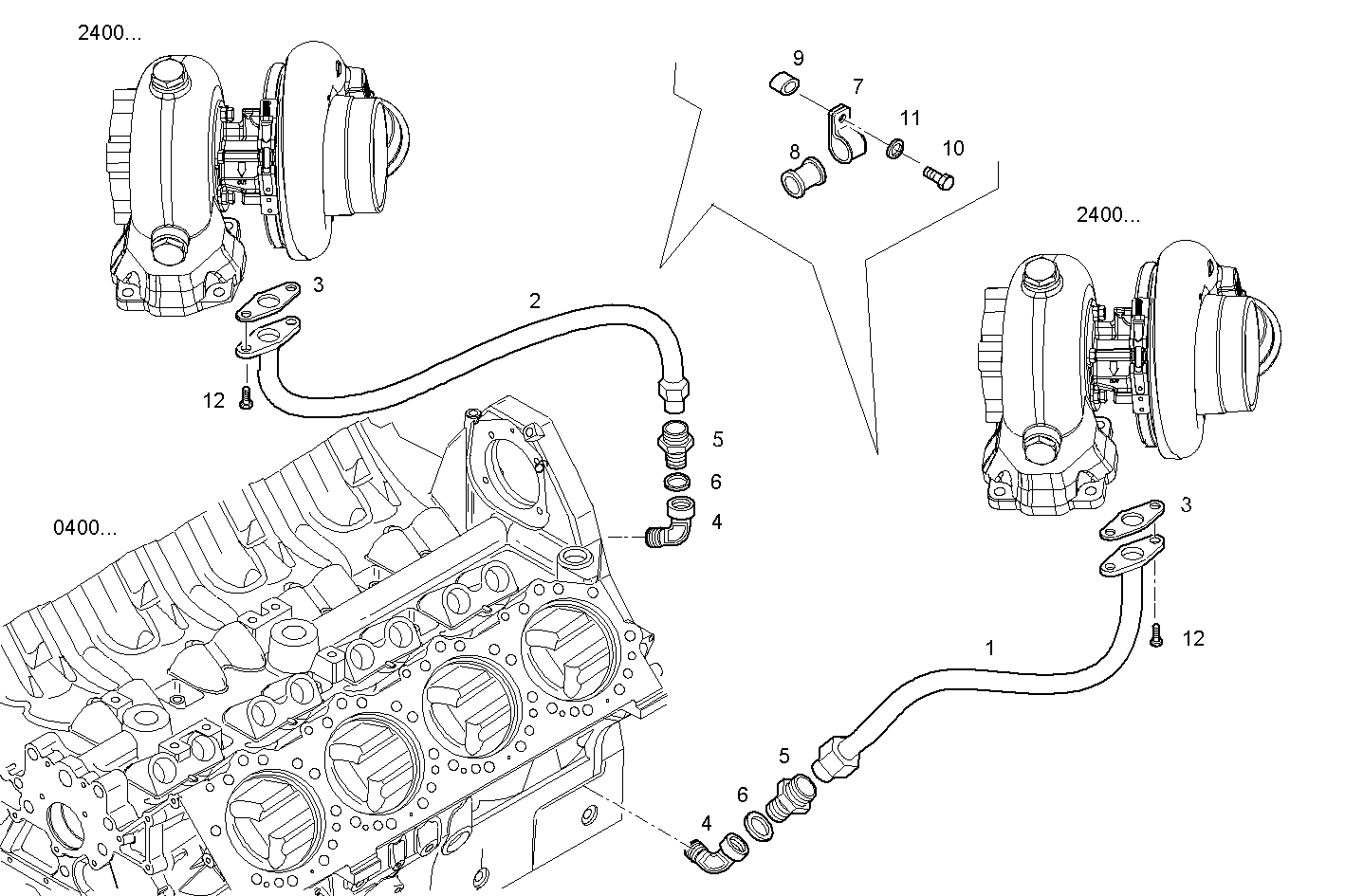

3050.020 LUBE OIL LINES - turbo oil outlet
Item | Part number | Description |
---|---|---|
1 | 8044293 | OIL LINE outlet turbo SX |
2 | 8044092 | OIL LINE outlet turbo DX |
3 | 98412509 | FLAT ENGINE GASKET |
4 | 16581611 | ELBOW COUPLING |
5 | 8031297 | THREADED UNION |
6 | 99434480 | SEAL GASKET Ø30X40 MM |
7 | 8033225 | CLIP |
8 | 4747140 | RUBBER PAD |
9 | 17816314 | SPACING BAR Ø8,5X18 MM SP=15 MM |
10 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
12 | 16690624 | CYLIND-HEAD SCREW M8X25 MM |
