V08ENTM12.10A210

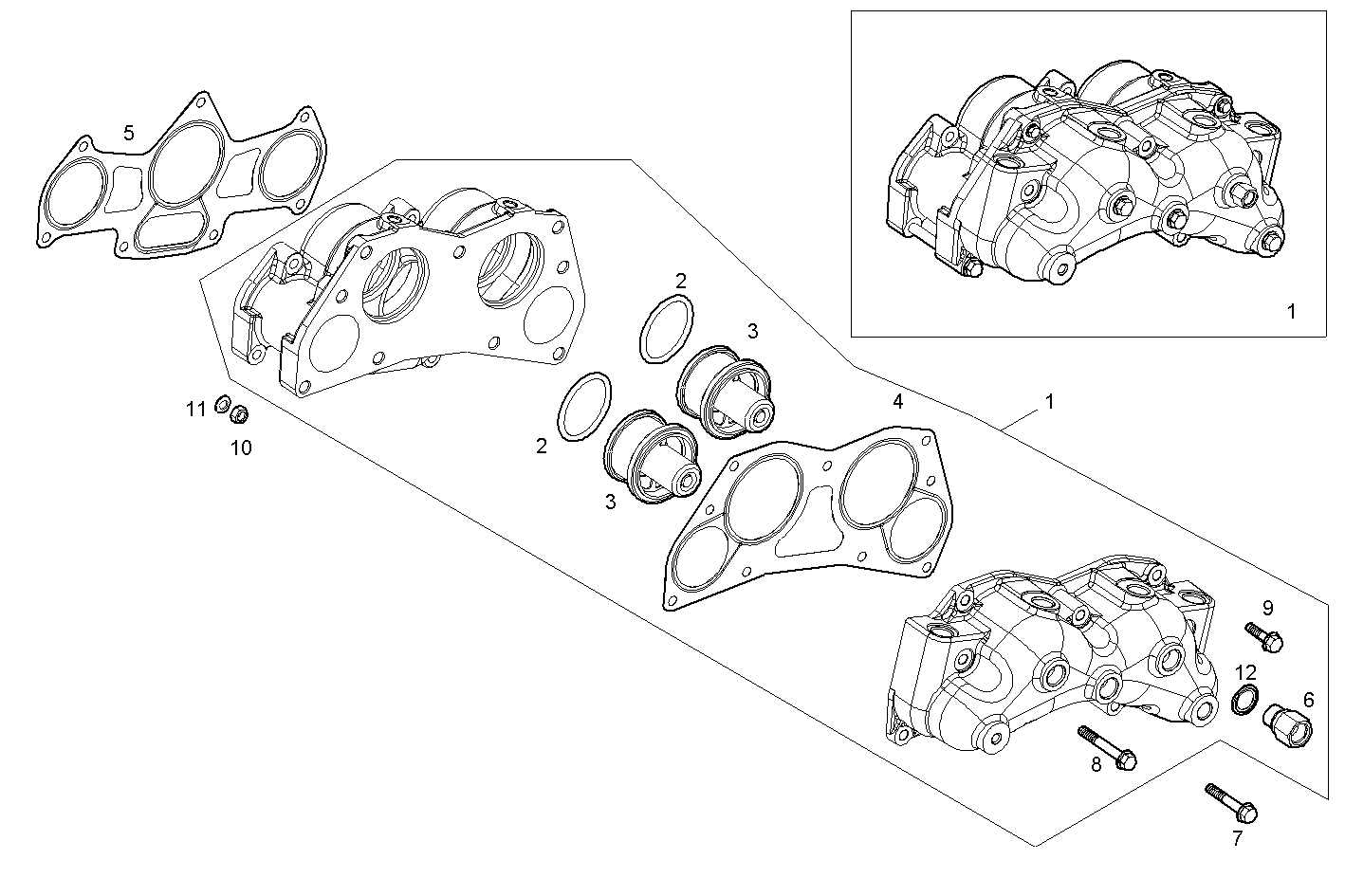

3260.012 TEMPERATURE REGULATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8039138 | THERMOSTAT BODY |
| 2 | 8039230 | WASHER |
| 3 | 8039176 | THERMOSTAT |
| 4 | 8039177 | FLAT ENGINE GASKET |
| 5 | 8039178 | FLAT ENGINE GASKET |
| 6 | 8041781 | THREADED UNION |
| 7 | 16586924 | HEXAGON BOLT M8X50 MM |
| 8 | 16592325 | HEXAGON BOLT |
| 9 | 16673835 | HEXAGON BOLT M8X30 MM |
| 10 | 17037925 | HEXAGON NUT M8X1,25 |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 99489021 | WASHER Ø20X28 MM SP=1,5 MM |
