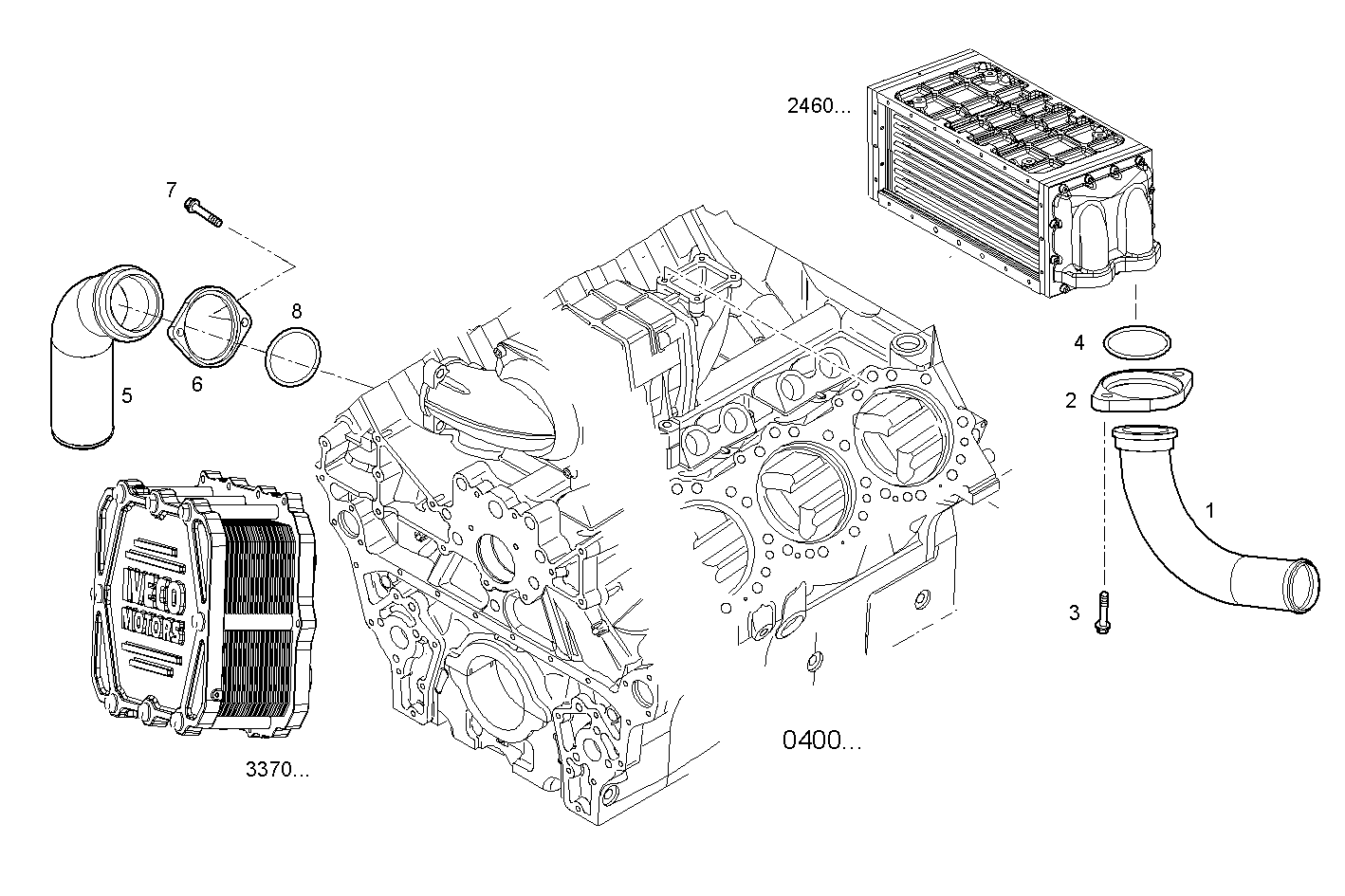

3390.079 SEA WATER LINES - water outlet from intercooler
Item | Part number | Description |
---|---|---|
1 | 8044315 | WATER PIPE |
2 | 8022237 | FLANGE |
3 | 16586425 | HEXAGON BOLT M8X25 MM |
4 | 17289981 | O-RING Ø53,57X3,53 MM |
5 | 8040459 | WATER PIPE |
6 | 8040456 | FLANGE |
7 | 16587125 | HEXAGON BOLT M10X25 MM |
8 | 17290781 | O-RING Ø78,97X3,53 MM |
