V08ENTM12.10A210

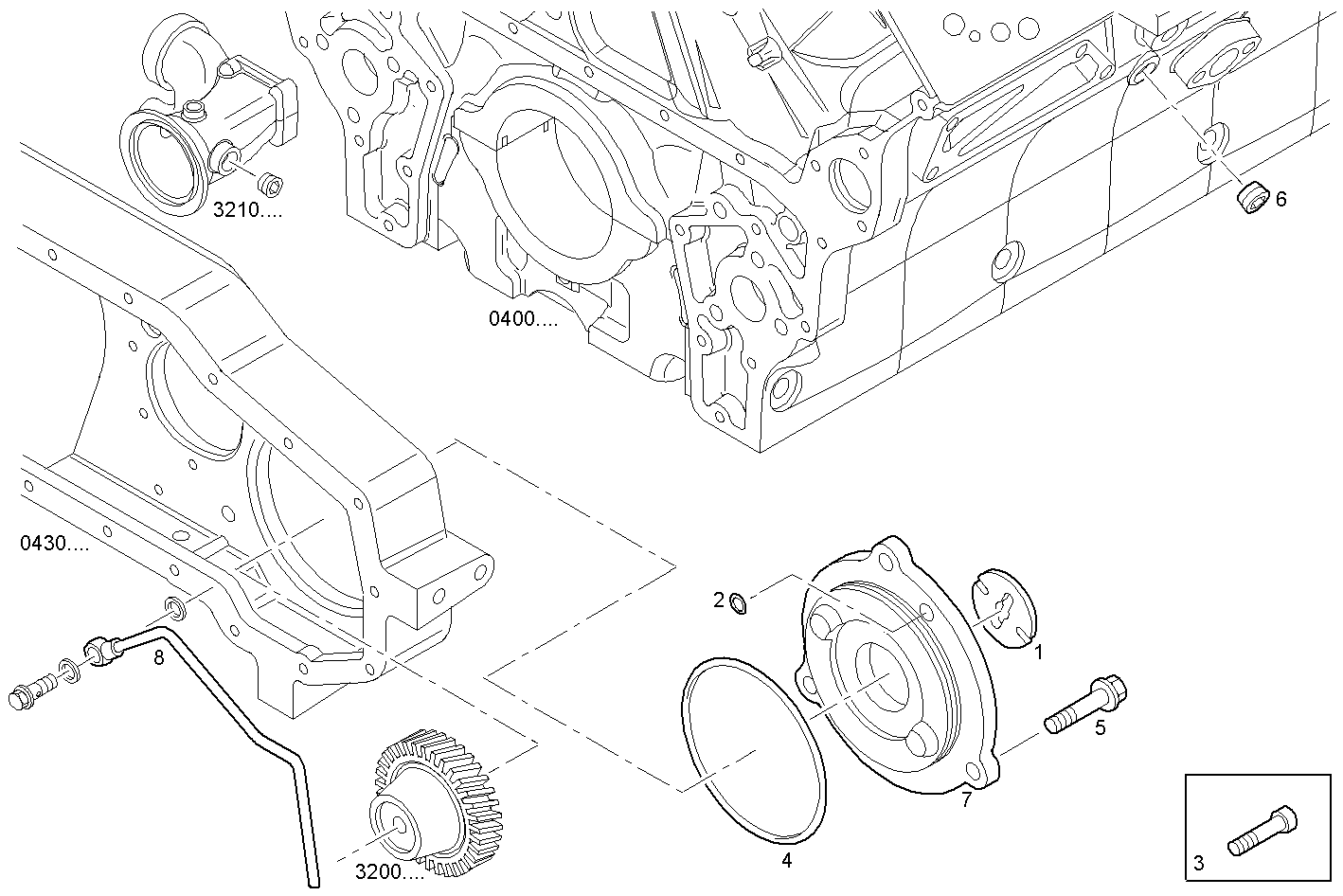

3800.035 AIR COMPRESSOR

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 504058399 FLEXIBLE COUPLING
2 17281381 O-RING Ø9,19 MM [FROM TO # 62977]
3 16693924 CYLIND-HEAD SCREW M12X35MM
4 17292381 O-RING Ø129,8 MM SP=3,53 MM
5 16596924 HEXAGON BOLT M6X10 MM
6 504060846 THREADED UNION
7 504058403 SPACING BAR
8 504059218 OIL LINE ASSY
