V08ENTM75.10A210

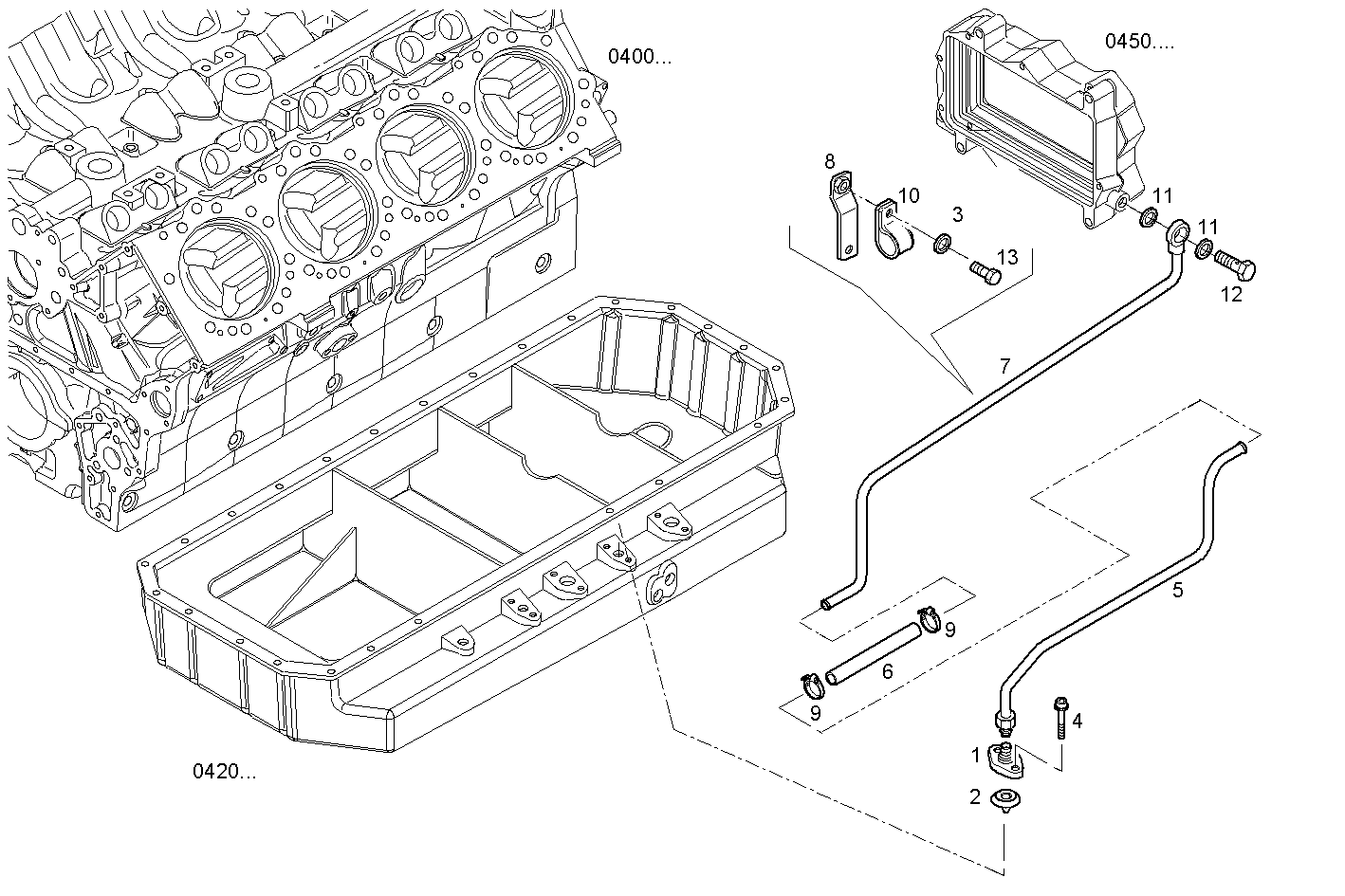

0450.214/03 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 504075263 | PIPE SOCKET |
2 | 504036532 | VALVE |
3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
4 | 16673735 | HEXAGON BOLT M8X25 MM |
5 | 8042296 | BREATHER PIPE |
6 | 504095075 | RUBBER SLEEVE |
7 | 8042543 | BREATHER PIPE |
8 | 8008113 | RETAINER |
9 | 18088392 | CLIP Ø16/25 MM |
10 | 17316592 | PIPE CLIP |
11 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
12 | 16511414 | SCREW CONNECTOR |
13 | 16605524 | HEXAGON BOLT M8X20 MM |
