VECTOR8TE2.A002

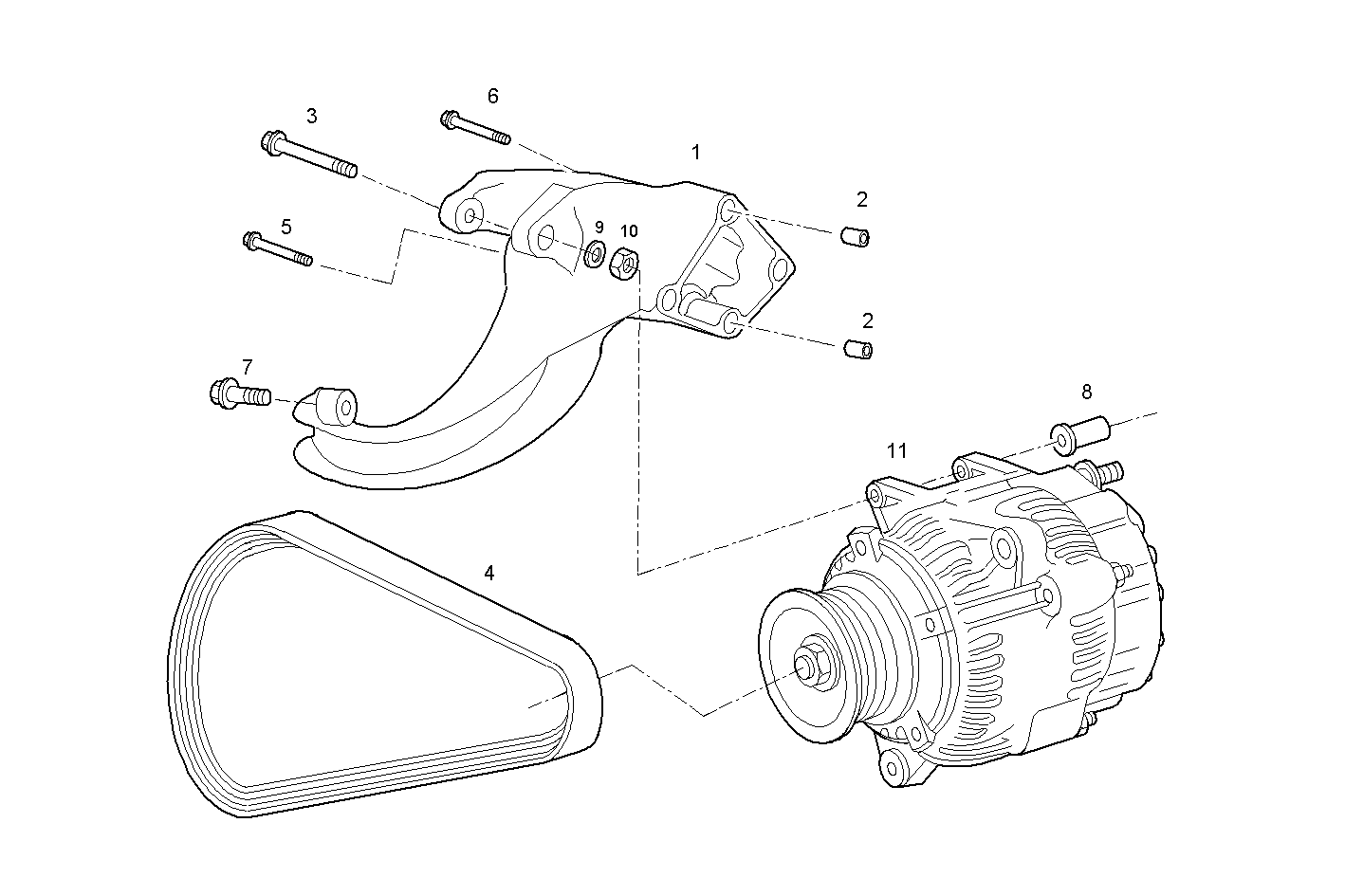

4000.172 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504119901 | GENERATOR SUPPORT |
| 2 | 98405462 | DOWEL PIN Ø10,2 MM |
| 3 | 99474161 | SCREW M10 |
| 4 | 504090128 | ALTERNATOR BELT |
| 5 | 16676635 | HEXAGON BOLT M10X60 MM |
| 6 | 16677035 | HEXAGON BOLT M10X90 MM |
| 7 | 16586925 | HEXAGON BOLT M8X50 MM |
| 8 | 99484032 | SPACER BUSH |
| 9 | 17097124 | WASHER 10x21 |
| 10 | 17038131 | HEXAGON NUT M10 |
| 11 | 504109413 | ALTERNATOR |
