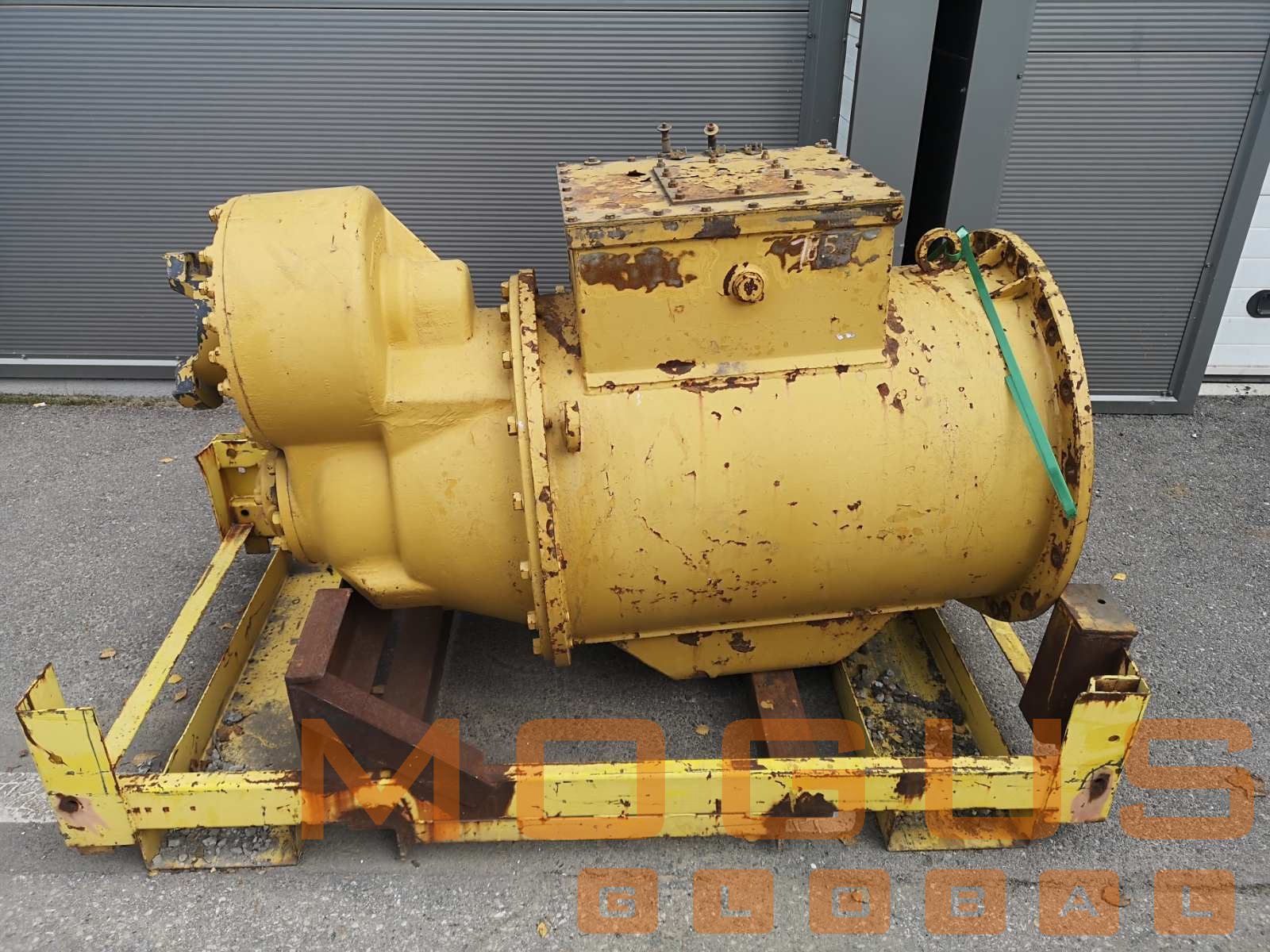

3T-0034 Transmission

Good used, came out of a CAT 785 truck

CAT reman part number 0R-4007

Fits:
784B, 784C, 785, 785B, 785C, 785D, 789, 789B

066-5816[1]RING-RETAINING

4J-0520[2]SEAL-O-RING

8E-8170[1]CARRIER AS

 3D-4603[6]PLUG-PIPE

9U-9857[1]TUBE AS

0S-1571[10]BOLT (3/8-16X1.75-IN)

4J-1386[42]SPRING

9G-9892[1]PISTON-BALANCE

9G-7467[4]GEAR-PLANETARY (25-TEETH)

160-2384[1]PLATE AS

 8T-1444[2]DOWEL

8E-3837[5]RING-SEAL

1T-0720[7]BOLT-12 POINT HEAD (3/8-16X1.25-IN)

7M-5130[11]PIN-SPRING

148-6559[2]BALL BEARING

3T-0992[1]HUB

9G-9556[1]RING-SEAL

9G-9558[1]RING-SEAL

6Y-3484[1]BALL BEARING

160-5894[1]PISTON-CLUTCH

5P-3414[1]RING-RETAINING

6V-2834[1]RING-RETAINING

5P-5421[2]BOLT (1/2-13X11.5-IN)

9G-9303[1]CARRIER-PLANETARY

9G-9568[1]GASKET

24.030-8537[12]BOLT-LOCKING (3/8-16X1.5-IN)

9G-9110[1]GEAR-SUN (44-TEETH)

188-8707[1]SHAFT AS

9G-9116[1]BUSHING

6Y-1018[1]ADAPTER-DRIVE

6K-7909[1]RING-RETAINING

9G-9185[1]GEAR-RING (80-TEETH)

9G-8718[6]RING-SEAL

160-5890[1]PISTON-CLUTCH

5K-9107[16]BOLT-LOCKING (3/8-16X0.75-IN)

205-9857[6]DOWEL

9G-9132[1]GEAR-RING (88-TEETH)

0S-1590[4]BOLT (3/8-16X2-IN)

5M-2894[62]WASHER-HARD (10.2X18.5X2.5-MM THK)

6V-3205[1]BALL BEARING

8E-6617[1]CARRIER-PLANETARY

9G-9570[1]SLINGER-OIL

9G-9115[1]BAFFLE

0S-0509[24]BOLT (3/8-16X0.75-IN)

9G-9131[1]GEAR-RING (88-TEETH)

6V-3230[17]BOLT (3/4-10X13.5-IN)

5P-8248[29]WASHER-HARD (20X36.5X3.5-MM THK)

337-6802[11]DISC-FRICTION

9N-4332[7]PLATE-CLUTCH

310-6157 C[8]BEARING (CAGED ROLLER)

250-9840 C[4]SHAFT AS

   (EACH INCLUDES)

 2A-3746[1]PLUG-CUP

160-5899[1]HOUSING AS

 4B-9880[2]BALL

 4D-8148[4]DOWEL

6I-9790[17]DAMPER-BOLT

9M-9729[1]SEAL-O-RING

7X-7608[1]RING-RETAINING

9G-9127[2]RING-SEAL

9G-8742[8]SHAFT AS-PLANETARY

 2A-3746[1]PLUG-CUP

5M-2051[8]BEARING-CAGED

8J-6704[24]SPRING

3T-0211[1]HOUSING AS-CLUTCH

 4B-9880[2]BALL

 4D-8148[4]DOWEL

2B-0947[12]BOLT (1/2-13X2.25-IN)

 5P-8245[12]WASHER-HARD (13.5X25.5X3-MM THK)

8E-5642[1]HOUSING AS-CLUTCH

 7M-8480[2]DOWEL

160-5423[1]PISTON-CLUTCH

0S-1626[2]BOLT (3/4-10X1.5-IN)

9G-9970[1]BAFFLE AS-OIL

9G-9894[1]HOUSING-CLUTCH

0S-1588[6]BOLT (3/8-16X1.25-IN)

160-5897[1]PISTON-CLUTCH

1D-4609[9]BOLT (3/4-10X3-IN)

1D-4612[1]BOLT (3/4-10X4-IN)

6V-2835[1]RING-RETAINING

3T-1064[1]GEAR-SUN (48-TEETH)

160-5888[1]CARRIER-PLANETARY

1S-5623[8]PLATE-LOCK

2M-3889[2]RING-SEAL

9G-7442[1]PISTON-CLUTCH

9G-9126[1]RING-SEAL

9G-9113[1]RETAINER-BEARING

9G-9114[1]GEAR-SUN (37-TEETH)

9S-8008[2]PLUG (1-1/16-12-THD)

1T-0416[7]BOLT (5/16-18X0.75-IN)

8E-6308[1]ADAPTER-SEAL

9M-1503[1]RING-METAL SEAL

5F-7054[6]SEAL-O-RING

5M-7925[8]BEARING AS-ROLLER

337-6800[13]DISC-FRICTION

282-5042[8]DISC-THRUST

9G-9337[1]GEAR AS-RING (80-TEETH)

3S-6605[10]PLUG-CUP

205-9856[6]DOWEL

6Y-2441[10]PLATE-CLUTCH

9M-6166[1]RING-RETAINING

5P-6726[2]RING-RETAINING

128-3446[1]PISTON AS-BALANCE

112-9938[1]BUSHING

3S-1282[2]RING-SEAL

8E-7040[1]HOUSING-CLUTCH

8E-6309[1]MANIFOLD AS

 4B-9784[2]BALL

8E-6853[1]CARRIER AS-RING

 4S-8541[2]DOWEL

4K-6804[1]SEAL-O-RING

9G-9461[1]PISTON-BALANCE

185-2888[1]RING-RETAINING

7G-8121[1]RING-LOCK

3S-8035[1]RING-SEAL

9G-9577[1]SPACER (0.1235-IN THK)

8E-9002[1]HUB

6V-2833[1]RING-RETAINING

160-5887[1]PISTON-CLUTCH

5H-9839[2]PIN-SPRING

9G-9557[1]RING-SEAL

9G-9336[1]GEAR AS-RING (88-TEETH)

 3S-6605[12]PLUG-CUP

8E-1448[1]HOUSING AS-CLUTCH

 4B-9880[2]BALL

9G-9569[1]RING

9G-8715[6]SHAFT-PLANETARY

310-6158 C[12]BEARING

8E-8163[12]DISC-THRUST

243-5388[6]GEAR-PLANETARY (22-TEETH)

162-9461[1]HOUSING AS-END

 4B-9880[2]BALL

118.1T-0550[10]PIN-SPRING

9N-4331[2]PLATE-CLUTCH

6Y-2818[6]PIN

2P-5755[6]SPRING

8E-8164[8]DISC-THRUST

243-5387[4]GEAR-PLANETARY (25-TEETH)

4M-5016[6]SPRING

209-0148[6]DOWEL

191-4544[6]DOWEL-REACTION

337-6801[3]DISC-FRICTION

9N-4333[2]PLATE-CLUTCH

9G-7466[4]GEAR-PLANETARY (21-TEETH)

6Y-1223[8]DISC-THRUST

0S-1591[6]BOLT (3/8-16X1.5-IN)
